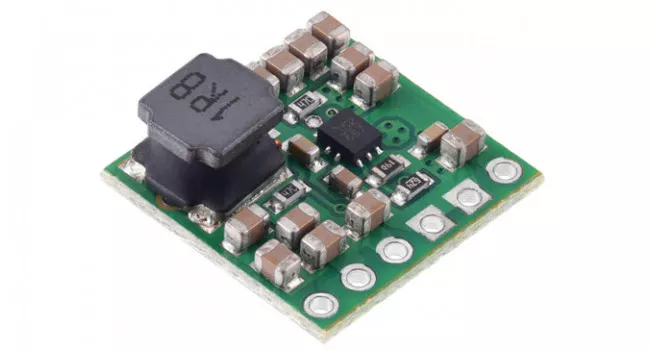

Pololu Step-Up Voltage Regulator, VIN 1.3-6V VOUT 6V
This compact (15.24 x 15.24mm) switching step-up (or boost) voltage regulator efficiently generates 6V from input voltages as low as 1.3 V and handles continuous input currents up to around 4A. (Note: minimum start-up voltage is 2.7 V, but it operates down to 1.3 V after that.) The pins have a 2.54mm spacing, making this board compatible with standard solderless breadboards and perfboards.
Warning: This boost regulator uses the typical topology that connects the input to the output through an inductor and diode, with nothing to completely break that current path. Therefore, the input voltage will go through to the output even when the regulator is disabled, and exposure to short circuits or other excessive loads will damage the regulator.
Quick Spec
- Minimum Operating Voltage: 1.3V (the minimum startup voltage is 2.7 V, but the regulator can operate down to 1.3 V after startup)
- Maximum Operating Voltage: 6V
- Maximum Input Current: 9.5A (Instantaneous. This is the rating for the switch, and regulator actively limits input current to this. Sustainable input current depends on input and output voltage and external conditions like ambient temperature and airflow)
- Output Voltage: 6V
- No Reverse voltage protection
- Dimensions: 15.24 x 15.24mm
- Net Weight: 4g
Resources
Shipping List
- 1 x Pololu Step-Up Voltage Regulator, VIN 1.3-6V VOUT 6V
Pololu Step-Up Voltage Regulator, VIN 1.3-6V VOUT 6V
- Brand: Pololu Electronics
- Product Code: 4013
- Weight: 0.004kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | D66 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R158.00 (Inc Tax: R181.70)
