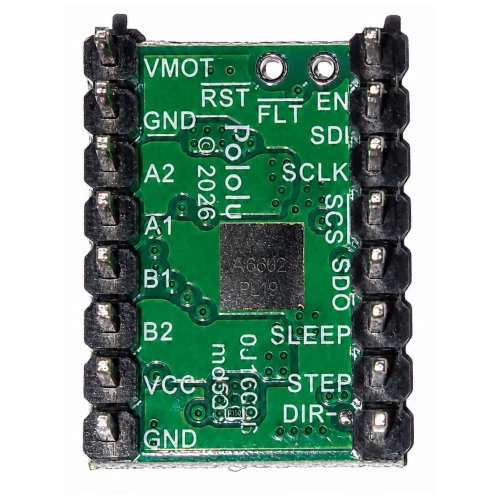

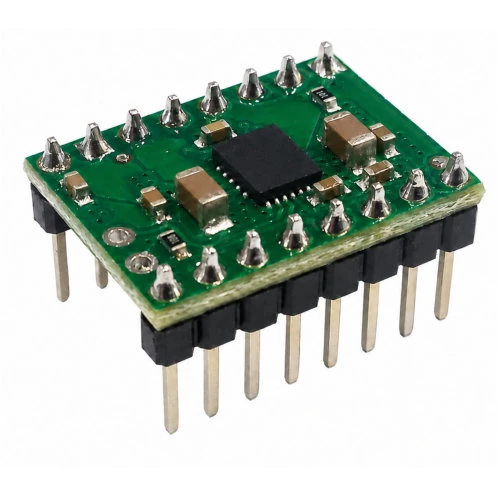

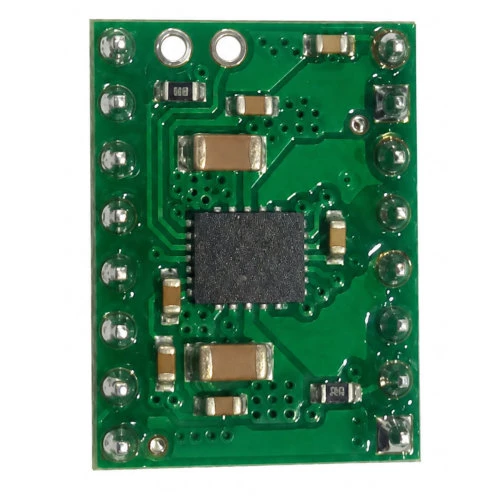

MP6602 Stepper Motor Driver Carrier with Soldered Header Pins
The MP6602 carrier drives bipolar or unipolar stepper motors at up to 4A, offering SPI configuration, 1/32 microstepping, stall detection, protection features, and pre-soldered headers for easy prototyping projects.
Quick Spec
- Driver IC: MP6602
- Motor Type: Bipolar and unipolar stepper motors
- Motor Supply: 4.5V to 35V DC
- Logic Supply: 3V to 5.5V DC
- Maximum Current: 4A per coil
- Microstepping: Full-step to 1/32-step
- Control Interface: SPI or STEP/DIR
- Diagnostics: Stall and back-EMF detection
- Protection: Over-current, voltage and temperature protection
- Headers: Pre-soldered 2.54mm male pins

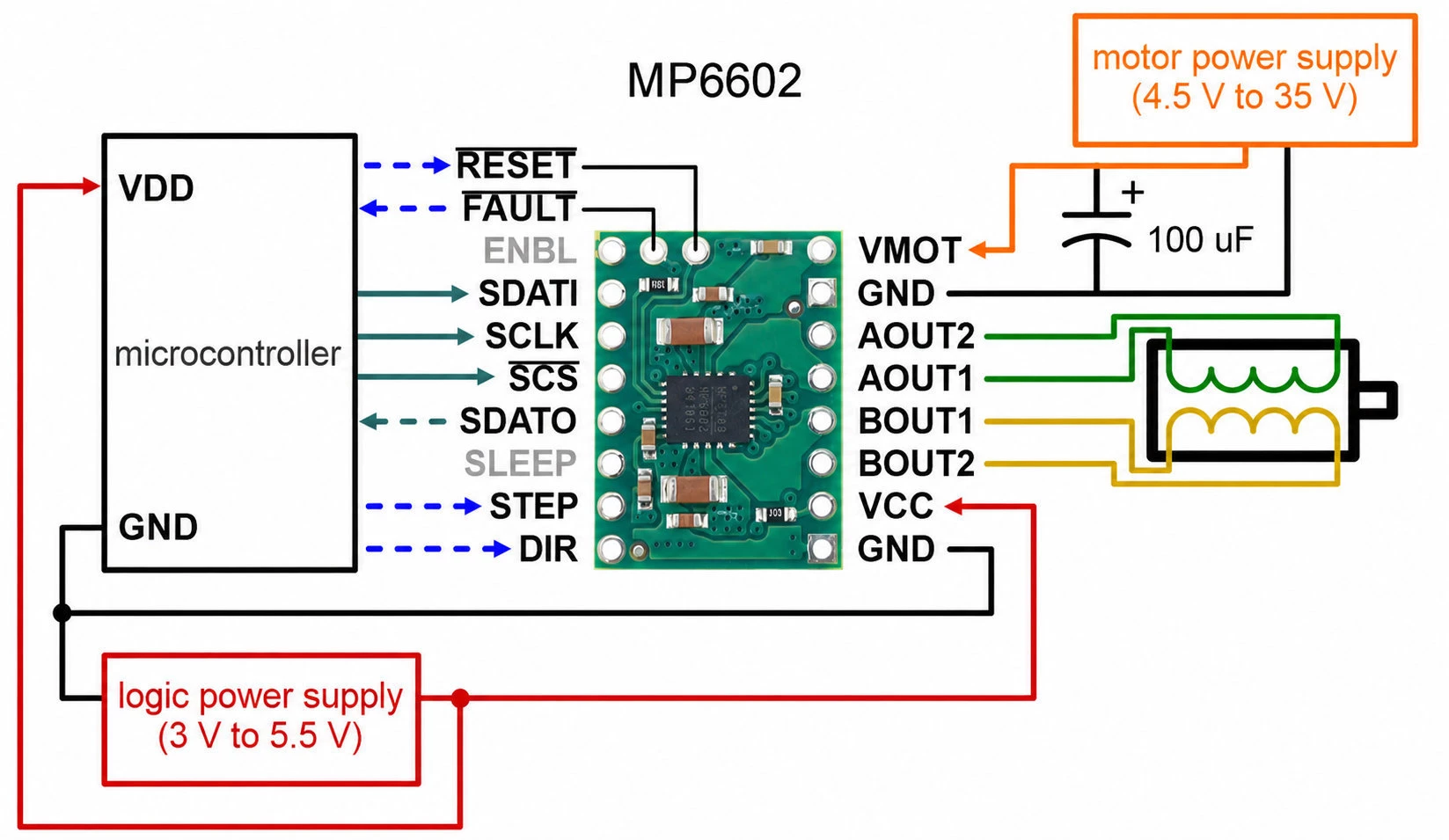

Wiring diagram
- Typical Wiring diagram for connecting a microcontroller to the MP6602.
Resources
Shipping List
- 1x MP6602 Stepper Motor Driver Carrier with Soldered Header Pins
MP6602 Stepper Motor Driver Carrier with Soldered Header Pins
- Brand: Pololu Electronics
- Product Code: 5689
- Weight: 0.003kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | FF314 |
| Stellenbosch | In Stock | L48 |
We ship free of charge between branches to complete your order.
-
R275.00 (Inc Tax: R316.25)
Tags: MP6602, stepper driver, motor controller, 4A driver, SPI control, 1/32 microstepping, stall detection, Pololu, soldered headers
