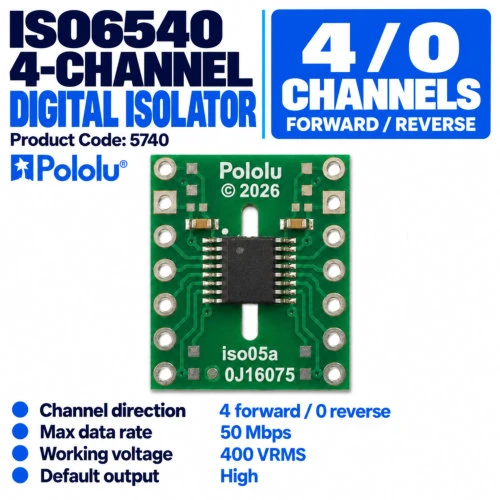

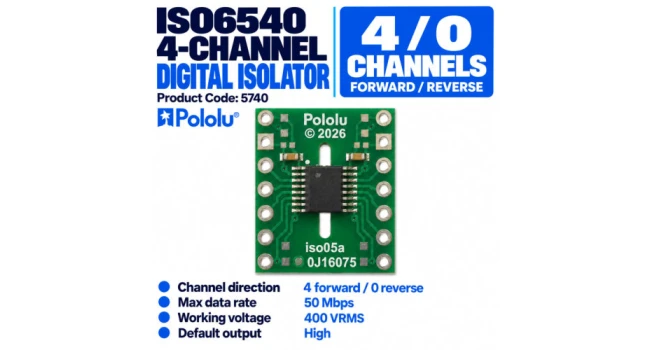

ISO6540 4-Channel Digital Isolator Carrier
The ISO6540 carrier transfers four high-speed signals across an electrical isolation barrier, protecting connected circuits while supporting separate logic voltages, default-high outputs, breadboards, and data rates up to 50 Mbps.
Quick Spec
- Isolator: Texas Instruments ISO6540
- Channels: 4 Forward, 0 Reverse
- Maximum Data Rate: 50 Mbps Per Channel
- Isolation Type: Functional Galvanic Isolation
- Working Voltage: 400 V RMS
- Supply Voltage: 1.71–1.89 V or 2.25–5.5 V Per Side
- Default Output: High

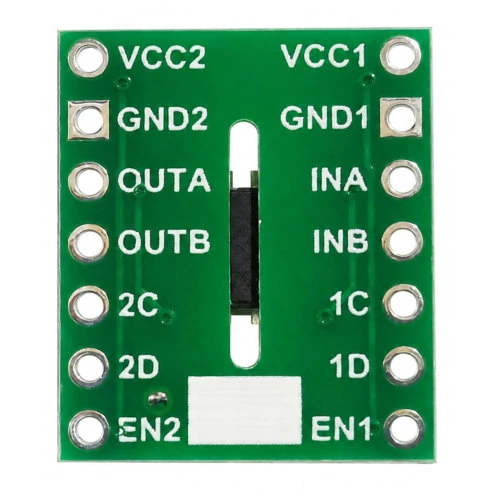

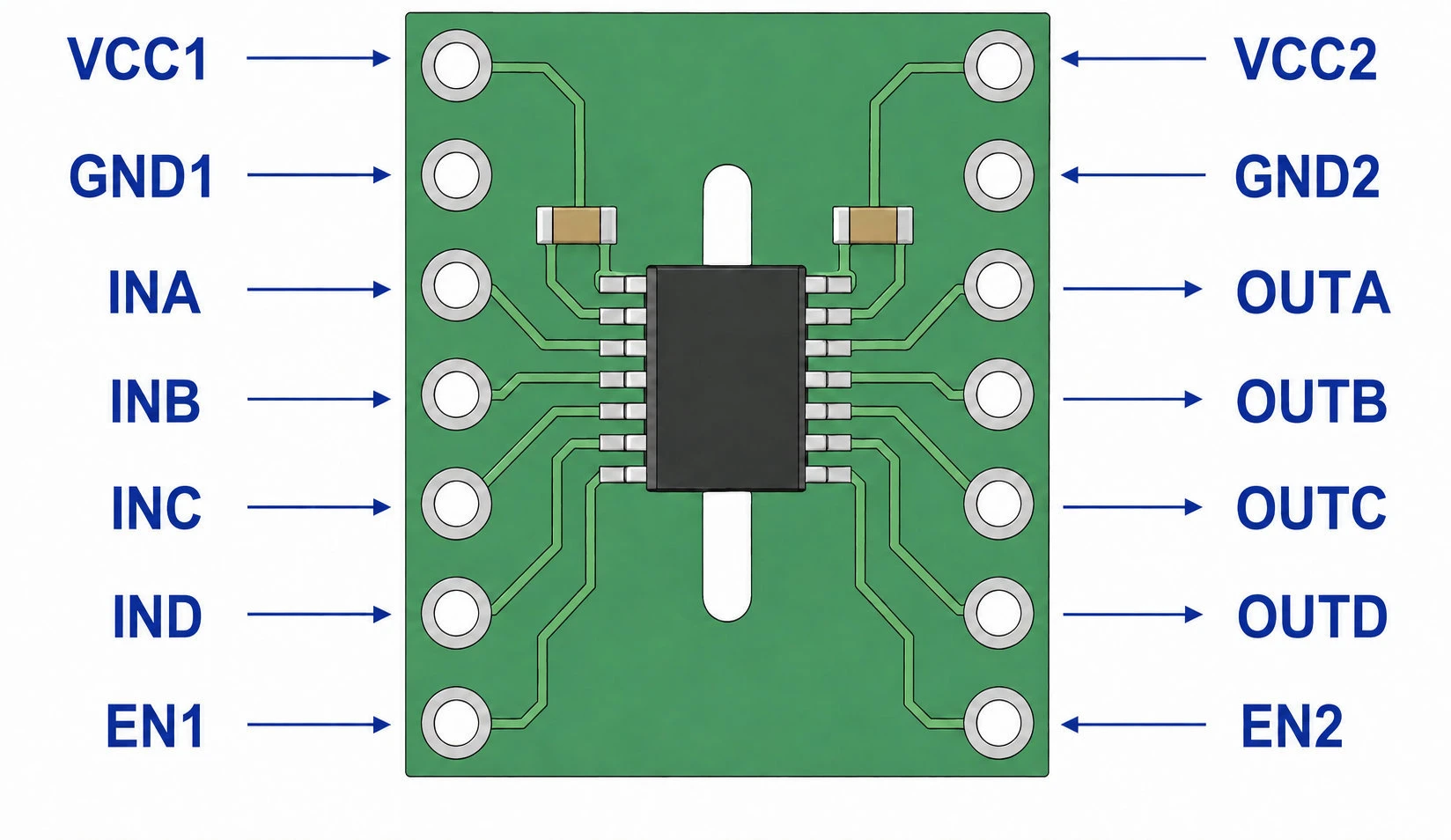

Pin Definitions
Resources
Shipping List
- 1x ISO6540 4-Channel Digital Isolator Carrier
ISO6540 4-Channel Digital Isolator Carrier
- Brand: Pololu Electronics
- Product Code: 5740
- Weight: 0.002kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | GG228 |
| Stellenbosch | In Stock | U39 |
We ship free of charge between branches to complete your order.
-
R50.00 (Inc Tax: R57.50)
Tags: ISO6540, digital isolator, galvanic isolator, 4 channel, functional isolation, level shifter, 50 Mbps, Pololu
