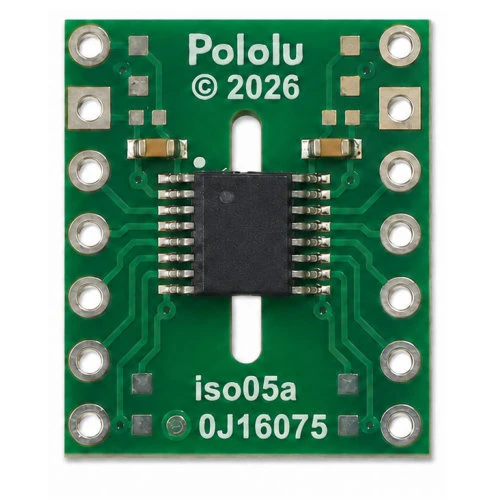

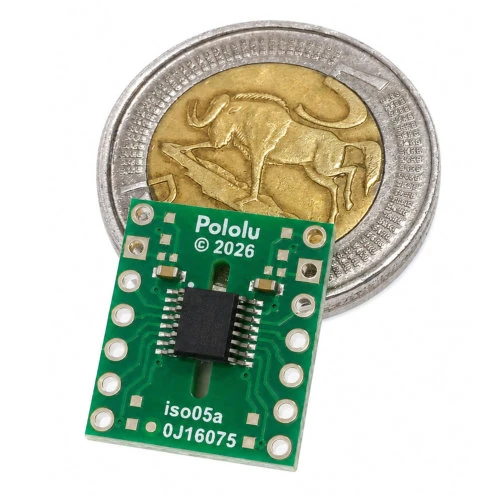

ISO6541F 4-Channel Digital Isolator Carrier
The ISO6541F carrier provides four fast, galvanically isolated digital channels, protecting connected circuits while supporting different logic voltages, three forward signals, one reverse signal, and default-low outputs during power loss.
Quick Spec
- Isolation Type: Functional galvanic isolation
- Digital Channels: 4 channels
- Channel Direction: 3 forward and 1 reverse
- Maximum Data Rate: 50Mbps per channel
- Working Isolation Voltage: 400VRMS
- Supply Voltage: 1.71V–1.89V or 2.25V–5.5V per side
- Default Output State: Low
- Logic Level Shifting: Supported
- Pin Pitch: 2.54mm

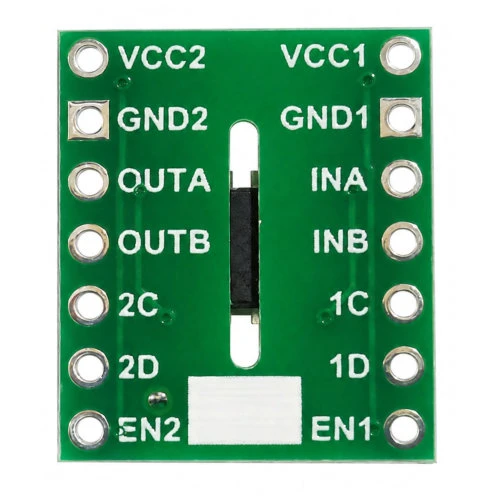

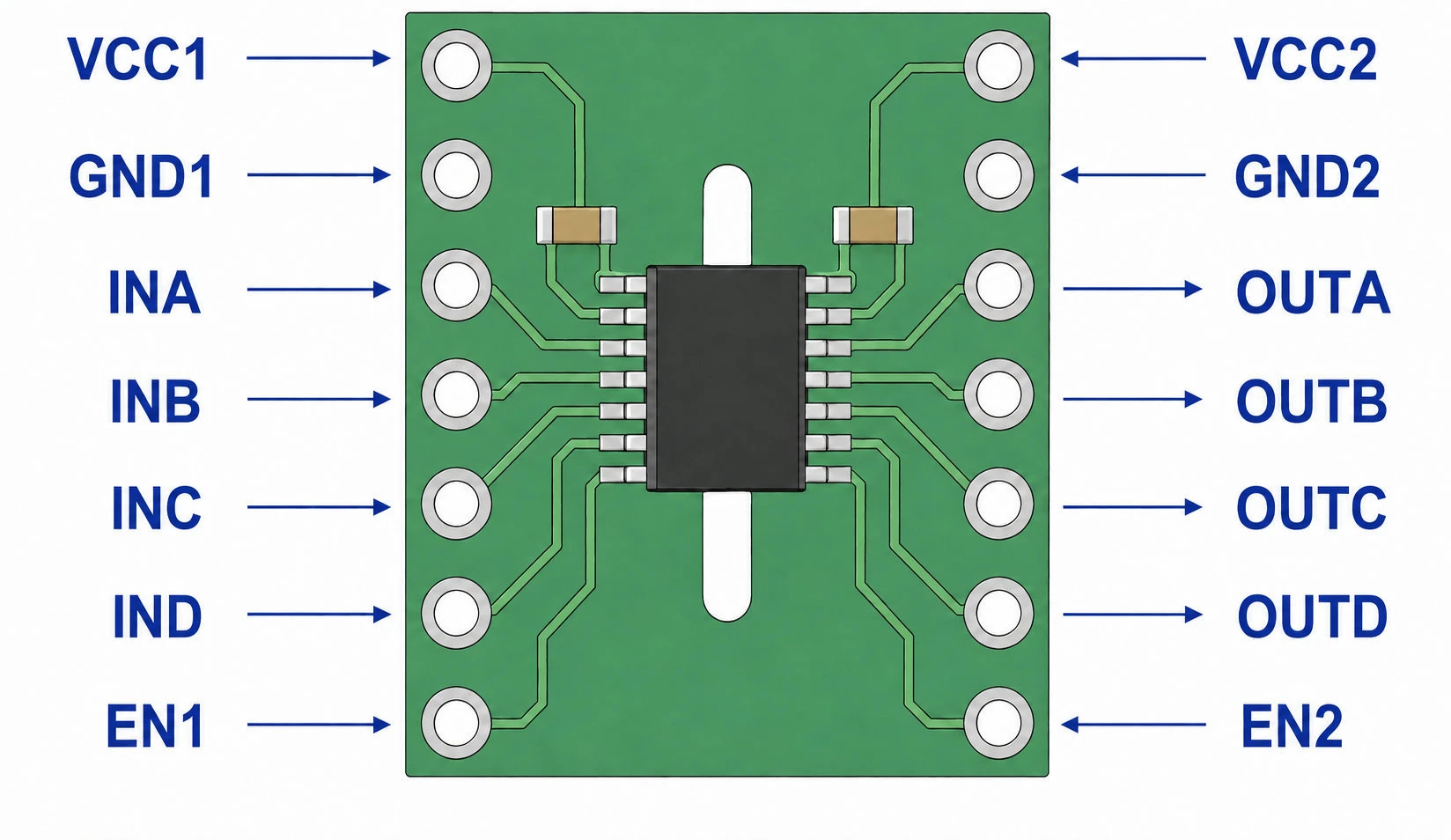

Pin Definitions
Resources
Shipping List
- 1x ISO6541F 4-Channel Digital Isolator Carrier
ISO6541F 4-Channel Digital Isolator Carrier
- Brand: Pololu Electronics
- Product Code: 5743
- Weight: 0.002kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | Limited Stock | FF234 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R50.00 (Inc Tax: R57.50)
Tags: ISO6541F, digital isolator, galvanic isolation, 4 channel, 50Mbps, level shifter, functional isolation, Pololu
