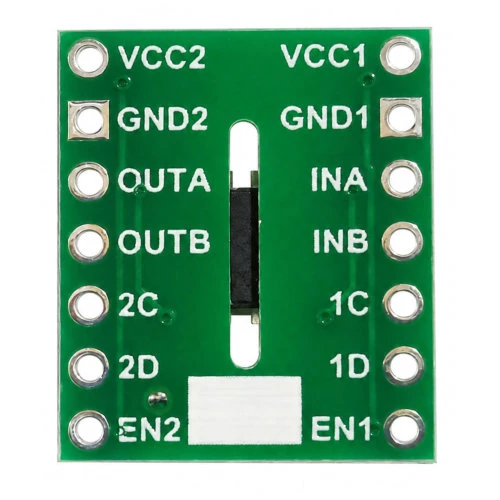

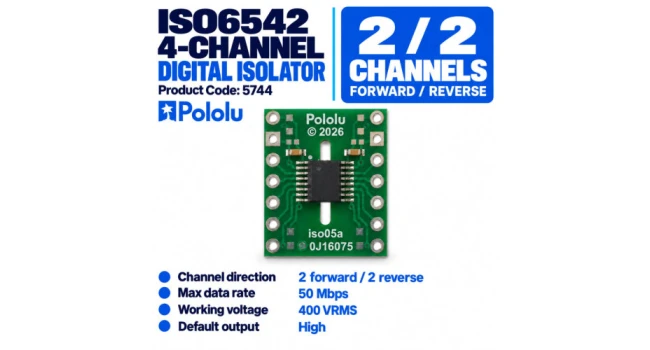

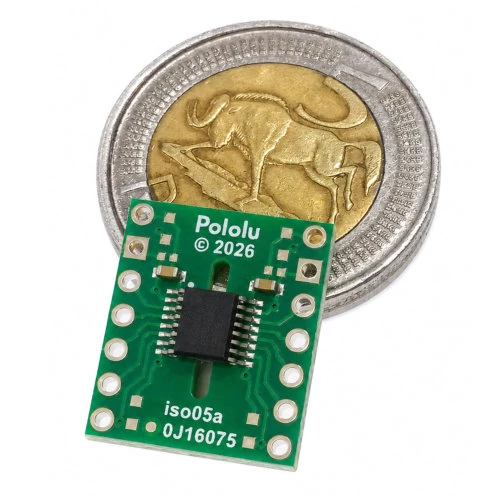

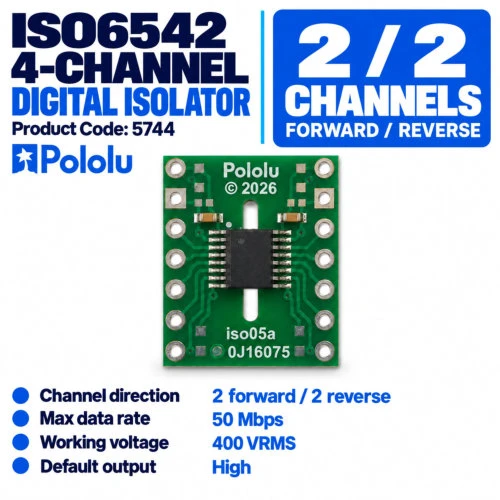

ISO6542 4-Channel Digital Isolator Carrier
This compact ISO6542 carrier provides four high-speed, galvanically isolated digital channels, with two channels in each direction, independent side supplies, default-high outputs, and convenient breadboard-compatible connections for embedded electronics projects.
Quick Spec
- Isolator IC: Texas Instruments ISO6542
- Channel Count: 4 digital channels
- Channel Direction: 2 forward and 2 reverse
- Maximum Data Rate: 50 Mbps per channel
- Isolation Type: Galvanic functional isolation
- Working Voltage: 400 VRMS
- Default Output: High during power or signal loss
- Supply Voltage: 1.71–1.89 V or 2.25–5.5 V per side
Resources
Shipping List
- 1x ISO6542 4-Channel Digital Isolator Carrier
ISO6542 4-Channel Digital Isolator Carrier
- Brand: Pololu Electronics
- Product Code: 5744
- Weight: 0.002kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | FF317 |
| Stellenbosch | In Stock | L74 |
We ship free of charge between branches to complete your order.
-
R50.00 (Inc Tax: R57.50)
Tags: ISO6542, digital isolation, galvanic isolator, 4 channel, 50 Mbps, level shifting, Pololu
