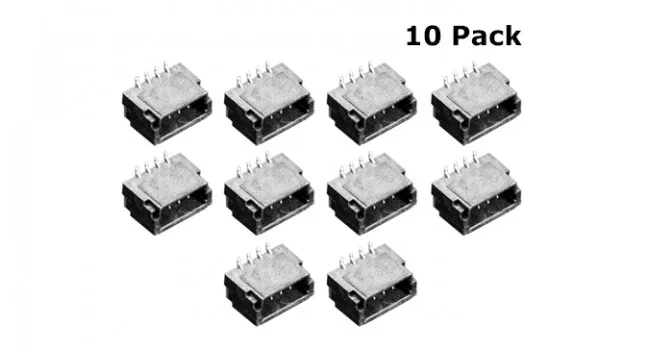

JST SH 4-pin Vertical Qwiic Connector (10 Pack)
Here is a tiny 4-pin Qwiic 1mm JST connector. This connector is used on all of the Qwiic-based boards and can be used to create your own I2C-based device compatible with the Qwiic system. Additionally, this connector will mate with all of the Qwiic cables with a solid lock.
Quick Spec
- Current Rating: 1.0A AC, DC (AWG #28)
- Voltage Rating: 50V AC, DC
- Temperature Range: -25oC to +85oC
- Contact Resistance:
- Initial Value 20 m ohm max
- After Environment tests 40 m ohm
- Insulator Resistance: 100 M ohm min
- Withstanding Voltage: 500 VAC/min
- Applicable Wire:
- Conductor size/ AWG #32 to #28
- Insulation O.D/ 0.4 to 0.8 mm
- Compliant with RoHS
Resources
Shipping List
- 10 x JST SH 4-pin Vertical Qwiic Connector
JST SH 4-pin Vertical Qwiic Connector (10 Pack)
- Brand: Adafruit
- Product Code: AF4328
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R88.00 (Inc Tax: R101.20)
