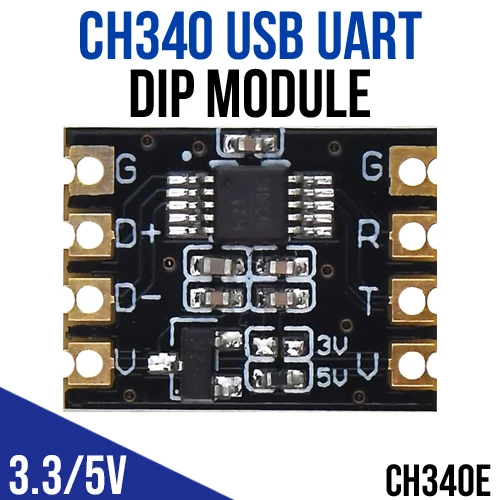

CH340 USB to UART DIP Module

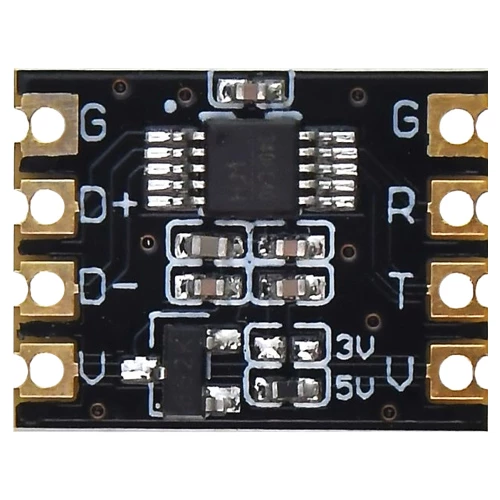

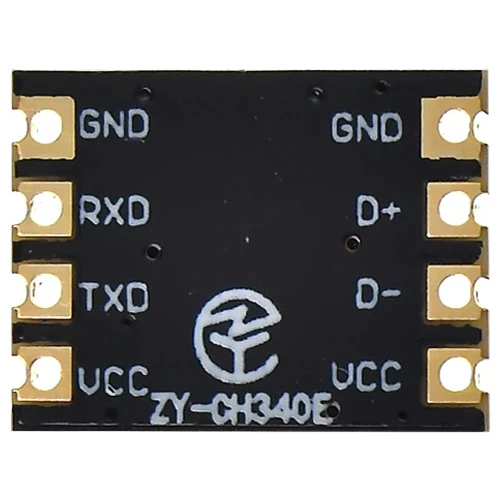

Introducing the CH340E USB to Serial Converter, a compact module (14.8 x 11.5mm) with CH340E chip supporting all operating systems. Featuring input terminals for GND, D+, D-, VCC, and output terminals for GND, TX, RX, VCC. Easily switch between 3.3V and 5V power supply with simple resistor adjustments.
Quick Spec
- Chip: CH340E
- 3.3V/5V compatible (selectable via onboard pads)
- Dimensions: 14.8 x 11.5 x 2.7mm
- Weight: 2g
Schematic
Resources
Shipping List
- 1 x CH340 USB to UART DIP Module
CH340 USB to UART DIP Module
- Brand: Generic
- Product Code: CH340-DIP
- Weight: 0.002kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | FD015 |
| Stellenbosch | In Stock | U18 |
We ship free of charge between branches to complete your order.
-
R46.00 (Inc Tax: R52.90)
