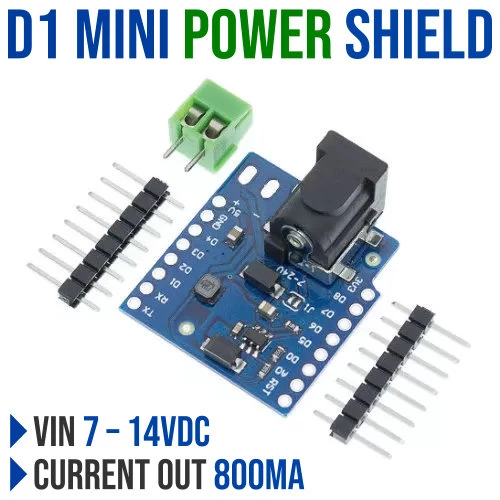

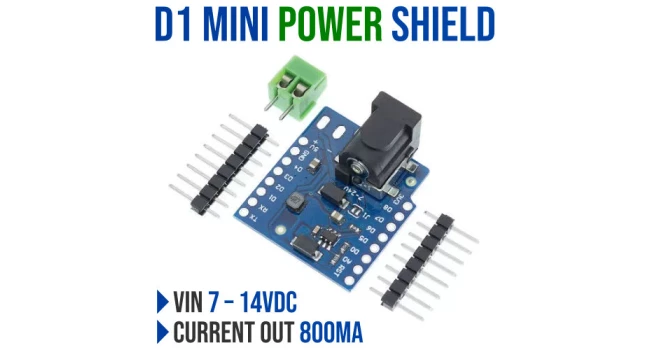

D1 Power Shield
The D1 Mini Series is a fantastic compact range of components. This shield gives the D1 Mini the ability to accept power from 7 to 14Vdc (up to 20Vdc in a pinch) via a 2.1mm DC jack or screw terminals. Very handy when you want your D1 Mini to run in a project without a USB connection. The shield has an onboard 5V regulator that supplies power to the D1 Mini via the shield headers, so all you have to do is plug it in and turn on power.
Quick Spec
- Vin: 7 – 14Vdc nominal input (20Vdc max)
- Current: 800mA output
- Input polarity protection
- 2.1mm DC jack input
- Screw terminal input
- Power LED
- Filter capacitors
Resources
Shipping List
- 1 x D1 Power Shield
- 2 x Headers
- 1 x 2-way screw terminal
D1 Power Shield
- Brand: Generic
- Product Code: D1-POWER
- Weight: 0.006kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | A8-01 |
| Stellenbosch | In Stock | J6074 |
We ship free of charge between branches to complete your order.
-
R38.00 (Inc Tax: R43.70)
