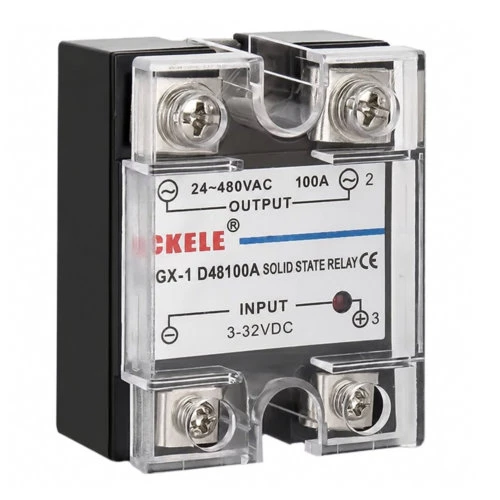

DC-AC Solid State Relay 480V 100A
The DC-AC Solid State Relay JGX-1 D48100A is a high-power switching solution designed for industrial and automation applications. It supports a control voltage range of 3-32VDC and can handle up to 100A at 24-480VAC, making it ideal for high-load operations. With fast switching times (≤10ms) and low on-state voltage (≤1.5V), it ensures efficient performance with minimal energy loss.
Built with high insulation resistance (1000MΩ at 500VDC) and a low off-state leakage current (≤2mA), this solid-state relay offers enhanced safety and durability. Designed for screw-fixed mounting, it provides a reliable and maintenance-free alternative to mechanical relays in demanding environments.
Quick Spec
- Model: JGX-1 D48100A
- Control Voltage: 3-32VDC
- Min Control Current: 5mA
- Max Control Current: 25mA
- Load Voltage: 24-480VAC
- Load Current: 100A
- Insulation Resistance: 1000MΩ @ 500VDC
- Off Leakage Current: ≤2mA
- On Voltage: ≤1.5V
- On-Off Time: ≤10ms
- Ambient Temperature: -20°C to +75°C
- Mounting Method: Screw Fixed
Dimensions
Shipping List
- 1 x DC-AC Solid State Relay 480V 100A
DC-AC Solid State Relay 480V 100A
- Brand: Generic
- Product Code: D48100A
- Weight: 0.114kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | J2-02 |
| Stellenbosch | In Stock | Z018 |
We ship free of charge between branches to complete your order.
-
R198.00 (Inc Tax: R227.70)
Tags: solid state relay, dc-ac relay, 100a relay, 480v relay, high power relay, ssr relay, industrial relay, electronic switch, automation relay, jgx-1 d48100a, jgx-1
