LCD FM Module

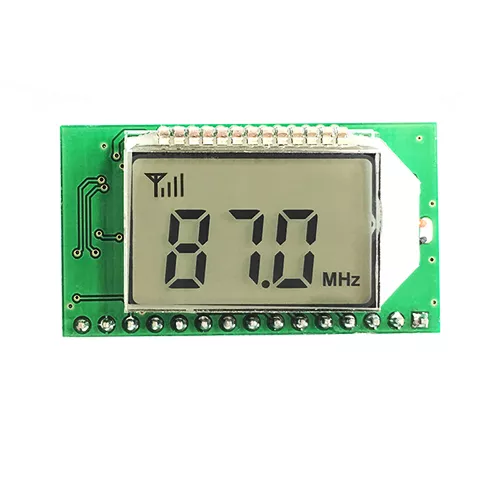

This LCD FM Module is a module with a static impatient FM radio receiver board, which is integrated with a high sensitivity radio chip, DSP audio signal processing module, audio power amplifier, and a LCD display circuit. It is a complete high sensitivity digital FM radio with an LCD Display.
Quick Spec
- Operating Temperature: -20 - +700oC
- Storage Temperature: -30 - +80oC
- Operating Voltages: 3 - 5 V
- IO Voltage: 0.3 - 5.5 V
- RF Input Voltage: 0.3 V
- Size: 40x22x5mm
- Weight: 73g
- Channel: Stereo
- Baud: 38 400

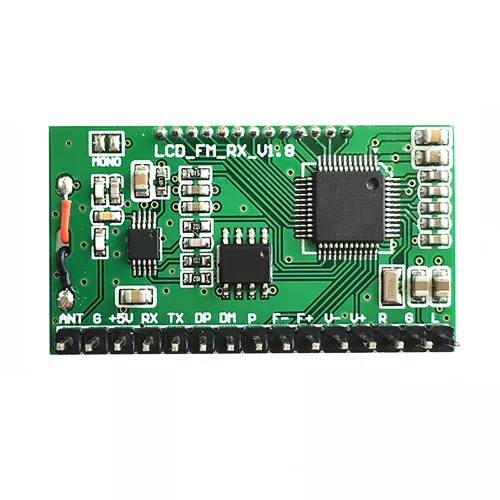

Wiring Diagram
- OUT_L: Speaker Left
- GND: Ground
- OUT_R: Speaker Right
- V+: Volume Up
- V-: Volume Down
- F+: Frequency Up
- F-: Frequency Down
- P/SCAN: Frequency Scan
- DM: Data Negative
- DP: Data Positive
- TX: Serial Transmit
- RX: Serial Receive
- +5V: Power Supply 3-5V
- GND: Ground
- ANT: Antenna
Shipping List
- 1 x LCD FM Module
LCD FM Module
- Brand: Generic
- Product Code: LCD-FM-MOD
- Weight: 0.009kg
- Product Status : Active
