LCD 16x2 Black on Green 5V - I2C

This is a 16x2 display with black text on green background that comes with the I2C backplate. You only require 4 wires to control the display and With the limited pin resources your project may be out of resources using a normal LCD shield. With this I2C interface LCD module, you only need 2 lines (I2C) to display the information.

Quick Spec

  • LCD Size: 16 x 2
  • Supply: 5V
  • I2C Chipset: MCP23008
  • Interface: I2C

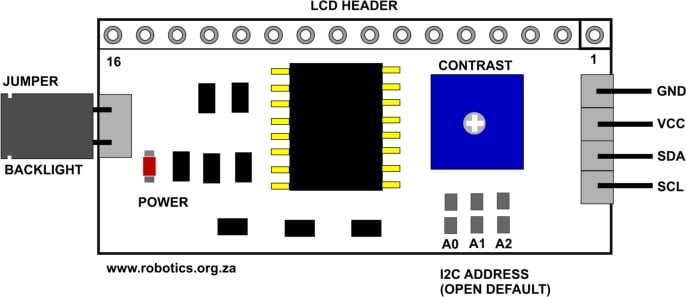

Board Layout

i2c lcd display

I2C Address Setup

Arduino I2C Display

The LCD2004 board utilized the PCF8574 I/O expander. This nifty little chip provides eight bits of parallel I/O addressable by a I2C bus address – 0x00 to 0x27. SainSmart tied all address leads to Vcc, so the LCD2004 board’s I2C address is permanently fixed at hex 27. This is rather limiting since no additional LCD2004s can be added to the bus. Anyway, you simply address the board and write an eight bit value which is then presented on the output pins of the PCF8574, which, in this case, are connected to the HD44780 based LCD screen.

lcd2004 Address Selection

Controlling your I2C Display with Arduino

i2c display arduino

Arduino Code



#include <wire.h>

#include <liquidcrystal_i2c.h>

// Set the LCD address to 0x3F for a 16 chars and 2 line display

LiquidCrystal_I2C lcd(0x3F, 16, 2);

void setup()

{

	// initialize the LCD

	lcd.begin();



	// Turn on the blacklight and print a message.

	lcd.backlight();

	lcd.print("Hello, world!");

}

void loop()

{

	// Do nothing here...

}


Shipping List

LCD 16x2 Black on Green 5V - I2C

  • Brand: Generic
  • Product Code: LCD1602-BG-5V-I2C
  • Weight: 0.038kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion No Stock
    Stellenbosch No Stock
    Bulk Location No Stock

    We ship free of charge between branches to complete your order.

  • R98.00 (Inc Tax: R112.70)
