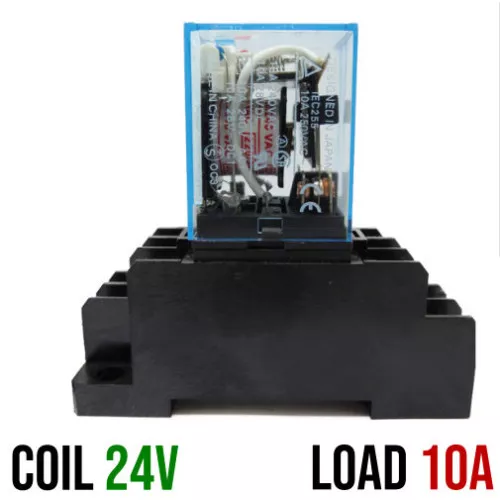

Relay Coil 24VDC Max Load 240AC 10A
This 24V Relay at 10A, plays the role as a protector or a circuit switch. Because the relay has 8 Pins, DPDT, 2 NO, 2 NC, makes it suitable for various applications such as domestic appliances, office machine, audio, equipment, automobile, etc. Due to the flat 8 Pins, the relay is great for general purpose use.
Quick Spec
- Manufacturer: OMRON
- Relay type: Electromagnetic
- Contacts configuration: DPDT
- Rated coil voltage: 24 v DC
- AC contacts rating: 10 A / 240 VAC
- DC contacts rating: 10 A / 28 VDC
- Contact current max: 10A
- Switched voltage: Max 250V AC
- Relay variant: Industrial
- Mounting: Socket
- Relay series: LY2
- Operating temperature: -25 ~ 40°C
- Body dimensions: 28 x 21.5 x 36mm
- Coil resistance: 18.79kΩ
- Mechanical durability: 50000000 cycles
- Operate time: 25ms
- Release time: 25ms
- Relay features: GREEN LED
Wiring Diagram
Resources
Shipping List
- 1 x Relay Coil 24V Load 240AC 10A
Relay Coil 24VDC Max Load 240AC 10A
- Brand: Generic
- Product Code: LY2NJ-24V
- Weight: 0.061kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | UD055+UD056 |
| Stellenbosch | In Stock | J2033 + J2034 + J2035 |
We ship free of charge between branches to complete your order.
-
R36.00 (Inc Tax: R41.40)
