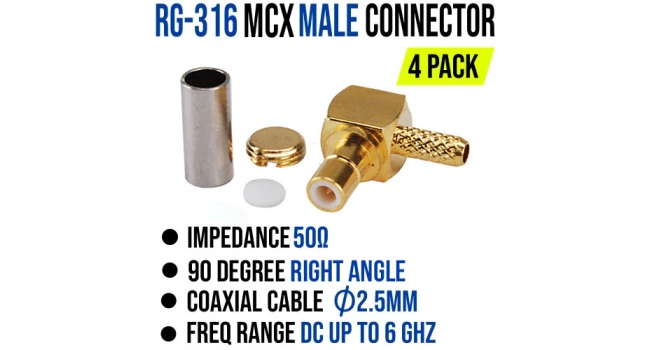

MCX Male Right Angle Crimp Connector for RG-316 Cable (4 Pack)
The MCX Male Right Angle Crimp Connector is designed for reliable termination of RG-316, RG-174, RG-188, and LMR100 coaxial cables in compact RF applications. Featuring a right-angle design, these connectors are ideal for installations where space is limited, such as antenna connections, wireless modules, and embedded RF systems. The crimp-style ferrule combined with a soldered center pin ensures a secure and stable connection for consistent signal performance.
Constructed from gold-plated brass with a PTFE insulator, these connectors offer excellent durability, corrosion resistance, and stable electrical characteristics. With a 50Ω impedance and support for frequencies up to 6 GHz, they are well suited for RF communication, Wi-Fi, and antenna pigtail applications. Supplied as a pack of four, they provide a cost-effective solution for prototyping, repairs, and custom cable assemblies.
Quick Spec
- Connector Type: MCX Male (Right Angle)
- Pack Quantity: 4
- Compatible Cable: RG-316, RG-174, RG-188, LMR100
- Impedance: 50Ω
- Frequency Range: DC – 6 GHz
- Working Voltage: 170 VRMS
- Dielectric Withstanding Voltage: 500 VRMS
- VSWR: ≤ 1.2
- Insulator Resistance: ≥ 1000 MΩ
- Material: Gold-plated brass (body and contact), PTFE insulator
- Termination: Crimp ferrule + soldered center pin
Dimensions
Shipping List
- 4 x MCX Male Right Angle Crimp Connector for RG-316 Cable
MCX Male Right Angle Crimp Connector for RG-316 Cable (4 Pack)
- Brand: Generic
- Product Code: RG316-M-90
- Weight: 0.005kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | FD114 |
| Stellenbosch | In Stock | B0321 |
We ship free of charge between branches to complete your order.
-
R24.00 (Inc Tax: R27.60)
