FM Tuner Evaluation Board Si4703 - I2C
This is an evaluation board for the Silicon Laboratories Si4703 FM tuner chip. Beyond enabling you to tune in to FM radio stations, the Si4703 is also capable of detecting and processing both Radio Data Service (RDS) and Radio Broadcast Data Service (RBDS) information. The Si4703 even does a very good job of filtering and carrier detection. It also enables data such as the station ID and song name to be displayed to the user. The breakout provides access to SDIO and SCLK for I2C communication while RST can be used for easy resetting.

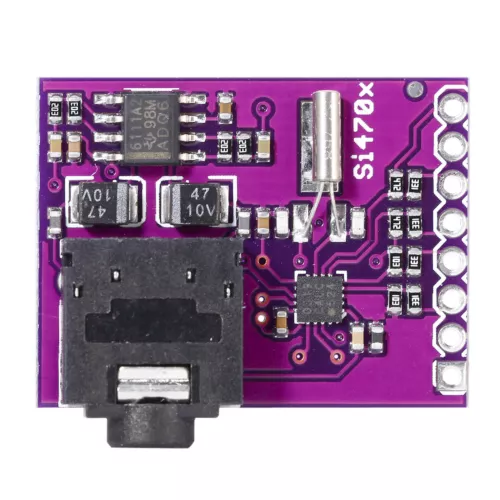

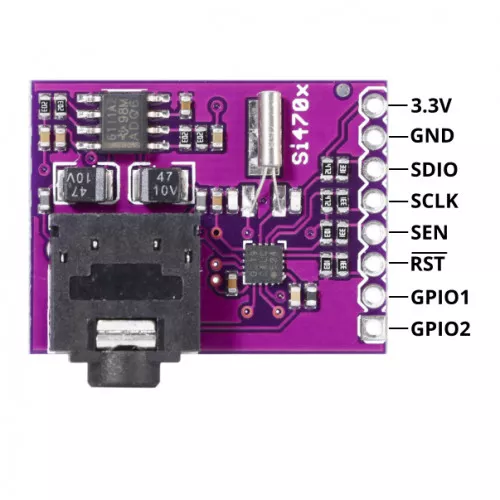

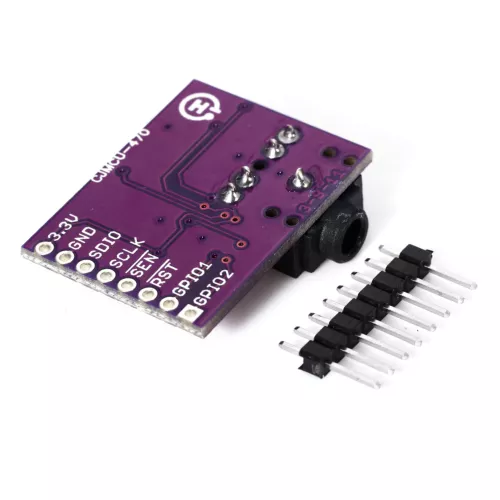

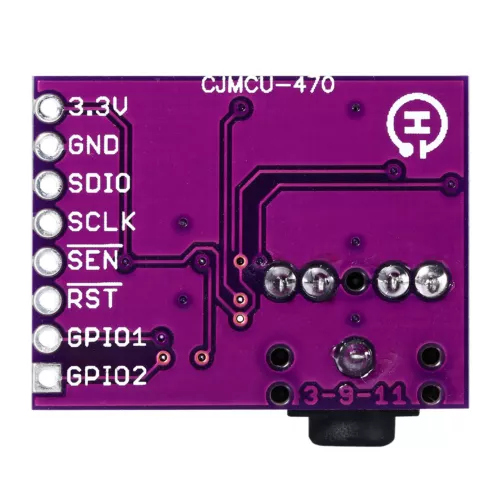

The SEN pin enables the user to change the mode of functionality of the IC. The last two pins broken out are GPIO1 and GPIO2 which can be used as general input/output pins, but also can be used for things like the RDS ready, seeking or tuning functions. Keep in mind, by plugging headphones into the 3.5mm audio jack, you effectively use the cable in your headphones as an antenna! Therefore, this board does not require an external antenna if using headphones or a 3.5mm audio cable longer than 3 feet.
Quick Spec
- Supply: 2.7 to 5.5 V
- Integrated LDO regulator
- Worldwide FM band support: 76–108 MHz
- Chipset: Silicon Labs Si4702/03-C
- RDS/RBDS Processor (Si4703)
- Seek tuning
- Automatic frequency control (AFC)
- Automatic gain control (AGC)
- Volume control
- Line-level analog output
- 32.768 kHz reference clock
- Allows direct connection to battery
- Size: 3 x 3 mm
Resources
Shipping List
- 1 x FM Tuner Evaluation Board Si4703 Breakout board
- 1 x 8 Way Sip Connector
FM Tuner Evaluation Board SI4703
- Brand: Generic
- Product Code: SI4703-MOD
- Weight: 0.005kg
- Product Status : Active
