• Description

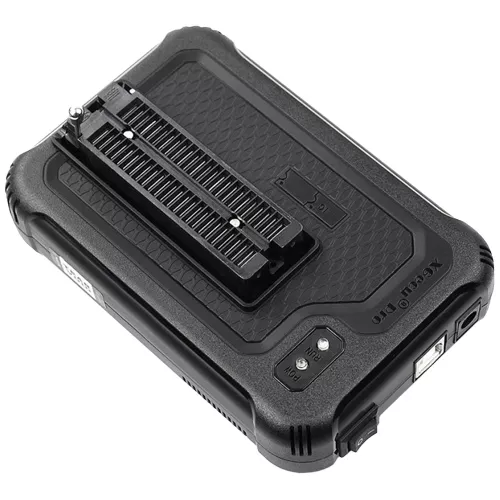

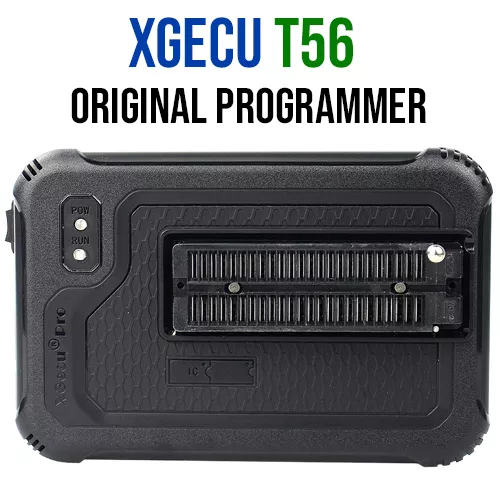

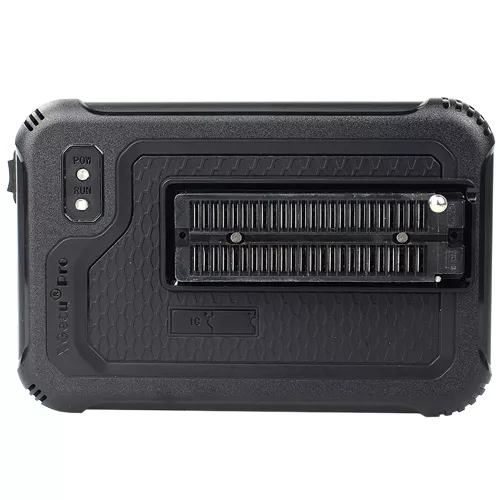

XGecu T56 Original Programmer

The XGecu T56 Original Programmer is a universal programmer that support over 28000+ devices from MCU, EEPROM, Flash (NAND and NOR) and eMMC units. The device is controlled from a Windows computer using a dedicated application, and communication takes place via the USB 2.0 interface. The programmer is equipped with a ZIF-48 socket and an 8-pin ISP connector, and with the use of additional adapters, it can program circuits in various types of housings, including DIP, PLCC, SOP, QFP, TSOP or BGA, and with various voltage levels from 1.2V to 6.5V (VCC) and 6.5 to 25V (VPP). A wide range of supported systems makes XGecu T56 suitable for both professional and hobby use.

Quick Spec

• Communication Interface: USB 2.0
• PIC32MZ 32-bit MCU 200MHZ + Xilinx SP6 FPGA microcontroller
• Supported Chip Types: serial EEPROM, parallel EEPROM and Flash, FLASH type NOR, NAND, SPI NAND, EMMC, NVRAM, CPLD
• Support for Systems in Housings: DIP, PLCC, SOP, QFP, TSOP or BGA (may require an additional adapter)
• ZIF-48 Socket
• 8-Pin ISP Connector
• Programming Speed: 12-25MB/s (write), 14-45MB/s (read)
• Self-Test Mode
• Supported Voltage Levels: 1.2 ~ 6.5V (VCC) and 6.5 ~ 25V (VPP) with 64 levels
• Power Supply: USB or DC connector
• Current Consumption up to 500 mA
• Reverse Polarity, Overload, Overvoltage Protection
• Software for Windows 2000, XP, 2003, 2008, Vista, 7, 10
• Dimensions: 129 x 85 x 29 mm

Resources

• Manufacturer Website
• Introduction
• Supported Devices
• User Guide
• Additional Information & Programs

Shipping List

• 1 x XGecu T56 Original Programmer
• 1 x USB Cable
• 1 x ISP Cable

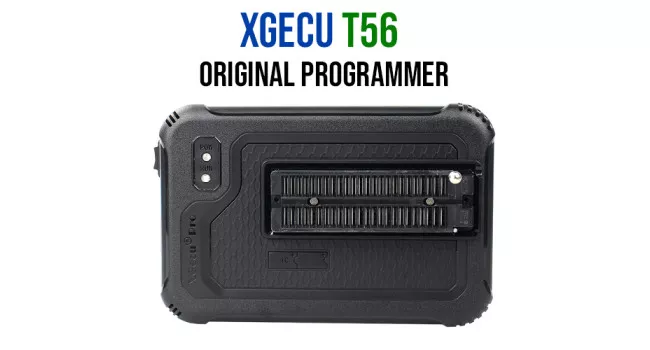

XGecu T56 Original Programmer - 28000+ Devices

• Brand: Generic
• Product Code: T56
• Weight: 0.302kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R3,898.00 (Inc Tax: R4,482.70)
