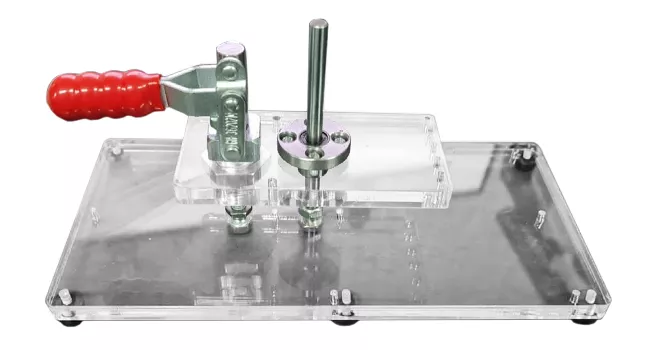

TB5 Basic Test Jig Fixture
A test jig is essentially a contraption that allows you to test many components of a board all at once.
There are a lot of things to consider when creating a test jig, ranging from test coverage to operator fatigue, and of course throughput and reliability.
The TB5 Basic Test Jig Fixture is mechanical PCB test fixture which requires that the user to manually close the test fixture's top hat on the PCB, holding it into place. This activates the bed of nails, pressing it against the PCB and allowing you to quickly and easily test, debug, or program multiple of the same boards.
Quick Spec
- Material: Acrylic
- Mounting Hole Diameter: 2.5mm
- Mounting Hole Spacing: 20mm
- No. of Mounting Holes: 6(Single Inline
- Probe Plate Height: 25mm
- Probe Plate Height Adjustment: 20mm (Max.)
- Dimensions: 205 x 100 x 83mm
Dimensions
Shipping List
- 1 x TB5 Basic Test Jig Fixture
TB5 Basic Test Jig Fixture
- Brand: Generic
- Product Code: TB5-BASIC
- Weight: 0.489kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R898.00 (Inc Tax: R1,032.70)
