TTGO ESP32 with OLED - W5500 Ready

LilyGO has released an ultra-compact development board built around the same microcontroller as the TTGO T-Watch-2020 ESP32-powered hacker-friendly smartwatch, boasting an on-board OLED display panel and optional wired Ethernet accessory.

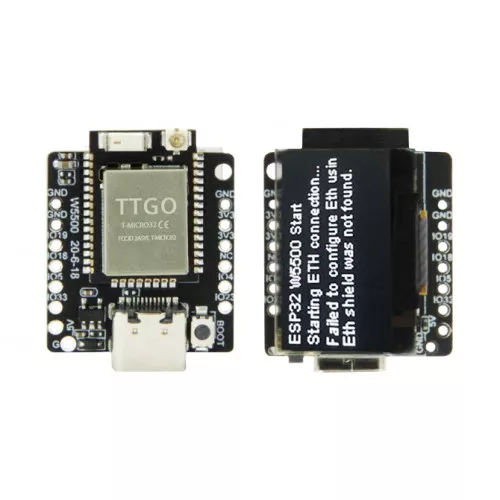

The LilyGO TTGO T-Lite W5500 is designed to pack a great deal of functionality into a small space. Built around Espressif's ESP32 system-on-chip, meaning it includes 2.4GHz 802.11b/g/n, Bluetooth 5.0 and Bluetooth Low Energy (BLE) connectivity as standard, the board has a footprint of just 29.5x23.8mm.

Despite this, it includes a USB Type-C port for power and programming, a total of 14 breadboard-friendly 2.54mm pin headers offering regulated 5V and 3.3V supplies, general-purpose input/output (GPIO), analog to digital conversion (ADC), SPI, and touch interfaces. There's even room, on the board's flipside, for a 0.96" OLED display panel, built around the SSD1306 driver.

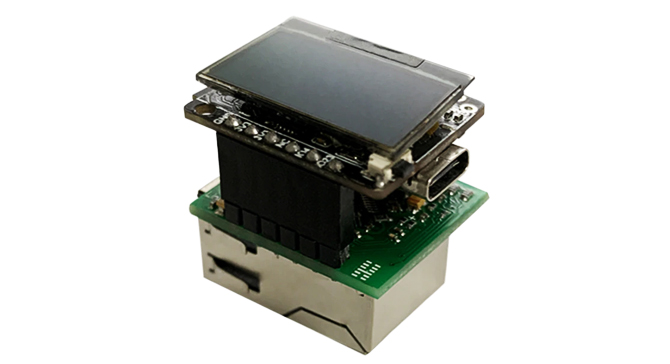

While primarily designed for wireless connectivity, using an on-board chip antenna or optional external antenna, the T-Lite W5500 has an optional accessory in the form of a wired Ethernet connection — built onto a daughterboard not much larger than the Ethernet jack itself.

Quick Spec

• Chipset: ESP32
• Flash: 4MB
• SRAM: 520 kB SRAM
• Button: Boot, Reset
• USB to TTL: CP2104
• On-board clock: 40MHz crystal oscillator
• Display: SSD1306 / 0.96 Inch OLED
• Antenna: Onboard ceramic antenna / Expandable antenna interface
• Working Voltage: 2.7 ~ 3.6V
• Power Supply Input: USB Type-C 5V/1A
• Working Temperature Range: -40 ~ +85℃
• Wi-Fi
• Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (esp32 chip)
• Protocol: 802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval
• Frequency Range: 2.4GHz ~ 2.5GHz (2400M~2483.5M)
• Transmit Power: 22dBm
• Communication Distance: 300m
• Bluetooth
• Protocol: Meet Bluetooth v4.2BR/EDR and BLE standard
• Radio Frequency: With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
• Audio Frequency: CVSD&SBC audio frequency
• Dimensions: 29.5 x 23.8mm
• Weight: 4g

Pinout

Resources

• Product Page
• Additional Information - GitHub

Shipping List

• 1 x TTGO ESP32 with OLED - W5500 Ready
