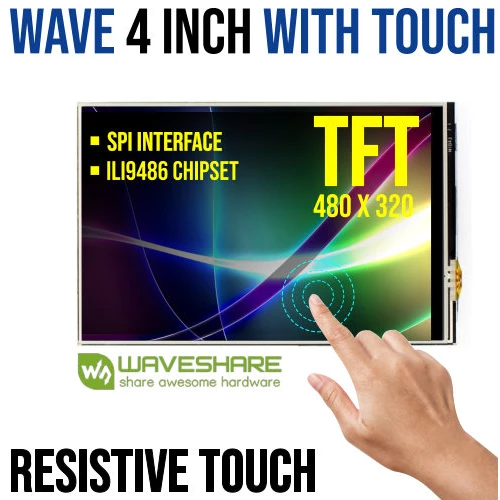

Wave 4 inch Touch Shield for Arduino
The Wave 4-inch TFT Touch LCD Shield for Arduino features a resistive touch screen with a 480x320 resolution. It utilizes a dedicated ILI9486 display controller and the XPT2046 Touch controller. With a standard Arduino interface, it is compatible with boards like Arduino UNO. The shield includes an onboard stand-alone touch controller for improved touch performance compared to solutions using AD pins directly for touch control. It also offers PWM backlight control and a Micro SD slot for convenient image storage.
Quick Spec
- LCD Type: TFT
- LCD Interface: SPI
- LCD Controller: ILI9486
- Touch Screen Type: Resistive
- Touch Screen Controller: XPT2046
- Colors: RGB, 65K colors
- Resolution: 480x320 (Pixel)
- Aspect Ratio: 8:5
- I/O Voltage: 3.3V/5V
Dimensions

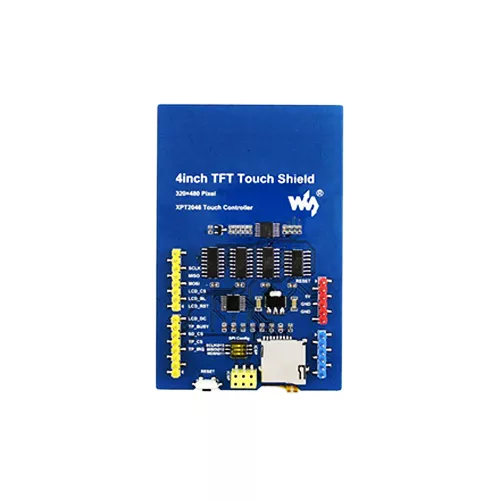

Pinout
| Symbol | Arduino/NUCLEO PIN | Description |
|---|---|---|
| 5V | 5V | 5V power input |
| GND | GND | Ground |
| SCLK | D13 | SPI clock |
| MISO | D12 | SPI data input |
| MOSI | D11 | SPI data output |
| LCD_CS | D10 | LCD chip select |
| LCD_BL | D9 | LCD backlight |
| LCD_RST | D8 | LCD reset |
| LCD_DC | D7 | LCD catalog/command selection |
| TP_BUSY | D6 | Touch panel busy |
| SD_CS | D5 | Micro SD card chip select |
| TP_CS | D4 | Touch panel chip select |
| TP_IRQ | D3 | Touch panel interrupt |
Resources
Shipping List
- 1 x Wave Display 4" Touch Shield for Arduino
Wave 4 inch Touch Shield for Arduino
- Brand: Waveshare
- Product Code: W13587
- Weight: 0.089kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R428.00 (Inc Tax: R492.20)
