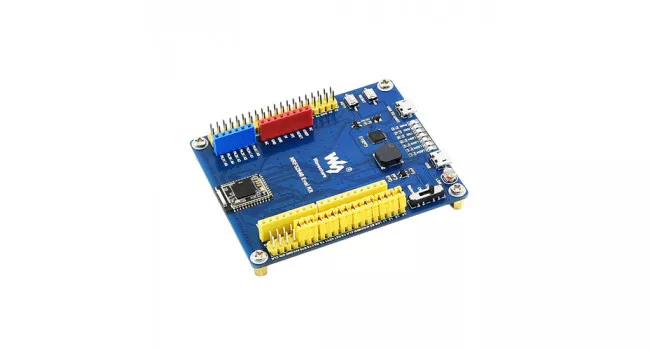

nRF52840 Evaluation Kit
NRF52840 Eval Kit is a development/evaluation kit based on nRF52840, features Arduino / Raspberry Pi connectivity, and several common used peripherals and supports the new generation Bluetooth 5.0. Compared to Bluetooth 4.0, the data rate is double, up to 2Mbps, with the transfer distance being quadrupled. Based on the ARM Cortex-M4F architecture, the CPU frequency achieves up to 64MHz. Bluetooth MESH and 2.4GHz radio are also available, that means higher performance, and more suitable applications.
Thanks to the onboard Arduino / Raspberry Pi compatible headers, both Arduino shields and Raspberry Pi HATs can be attached at the same time, make it easy to use more expansion resources.
Quick Spec
- Arduino connectivity, supports Arduino shields
- Raspberry Pi connectivity, supports Raspberry Pi HATs
- Integrates CP2102 USB TO UART, for serial debugging
- Onboard several peripherals and interfaces, convenient for study / development
- Comes with development resources and manual (examples for Bluetooth 5.0 / Bluetooth MESH
Board Layout
- Arduino headers: for connecting Arduino shields
- Raspberry Pi GPIO header: for connecting Raspberry Pi HATs
- USB TO UART interface
- USB port: the USB port of nRF52840
- 4PIN SWD debugging interface: for connecting ARM Debugger to program / debug
- 3.3V/5V power input/output: provides power output OR powered from external power supply
- Core52840: nRF52840 core module
- CP2102: USB TO UART converter
- Buzzer
- RT9193-33: 3.3V voltage regulator
- Optical sensor
- Keys: RESET and USER KEY
- LEDs
- PWR: power indicator
- RXD/TXD: nRF52840 UART RX/TX indicator
- LED1~LED4: USER LEDs
- Power switch
- USB: powered from USB connection
- Battery: powered from CR2032 battery
- nfc antenna connector
- TF card slot
- CR2032 battery holder
- Jumpers
- Short the jumpers: connect the onboard peripherals to I/Os in example code
- Open the jumpers: connect to custom I/Os via jumper wires
- Current testing pads: 0Ω resistor is soldered by default, remove the resistor to test current of the board
Resources
Shipping List
- 1 x NRF52840 Eval Kit
- 1 x USB type A plug to micro B plug cable
- 1 x NFC antenna
nRF52840 Evaluation Kit
- Brand: Waveshare
- Product Code: W15951
- Weight: 0.101kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | Limited Stock | GG321 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R519.00 (Inc Tax: R596.85)
