• Description

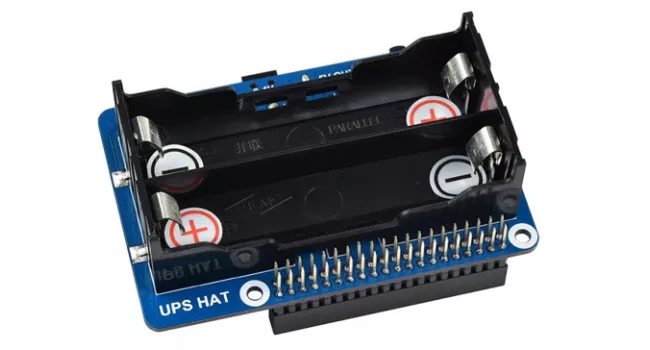

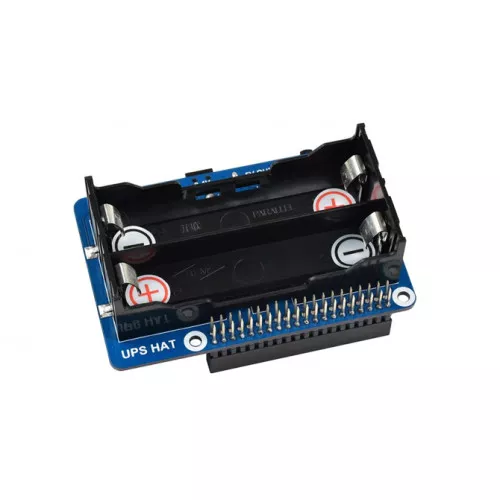

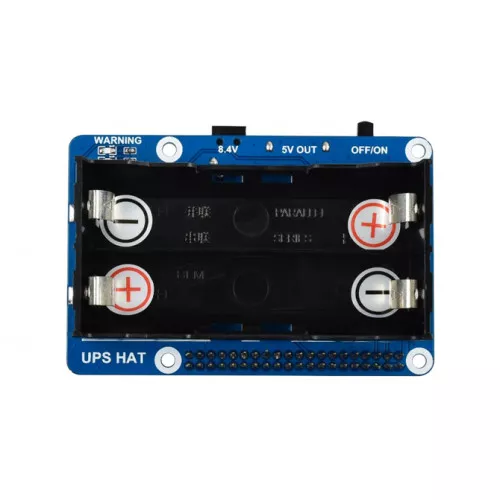

Wave UPS 2 x 18650 Module for Pi

This is a UPS power module for the Raspberry Pi, providing 5V 2.5A uninterruptible power supply, with multi battery protection circuits. The module uses I2C bus communication for monitoring the batteries voltage, current, power, and remaining capacity in real time. The board has over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, for more safe and stable usage.

Quick Spec

• Output Voltage：5V
• Charger：8.4V 2A
• Control Bus：I2C
• Battery Supported：18650 Li battery (NOT included)
• Dimensions：56 × 85mm
• Mounting Hole：3mm
• Net Weight: 243g

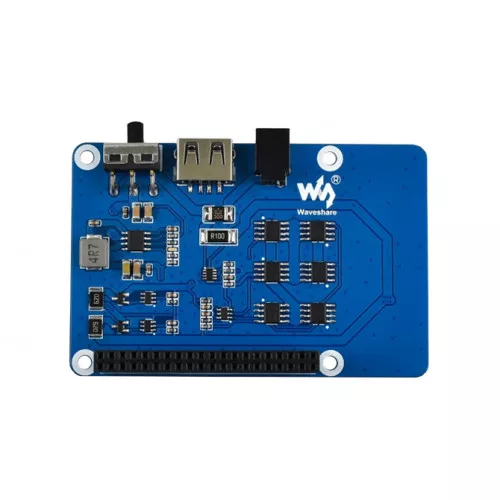

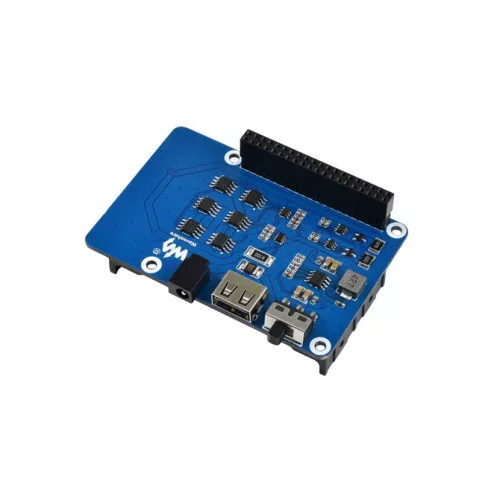

Board Layout

Resources

• Product Page
• Product Wiki
• Demo Codes
• Schematic

Shipping List

• 1 x UPS HAT
• 1 x 8.4V battery charger
• 1 x 2×20PIN female header
• 1 x RPi screws pack (2pcs)

Wave UPS 2 x 18650 Module for Pi

• Brand: Waveshare
• Product Code: W18306
• Weight: 0.22kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R423.00 (Inc Tax: R486.45)
