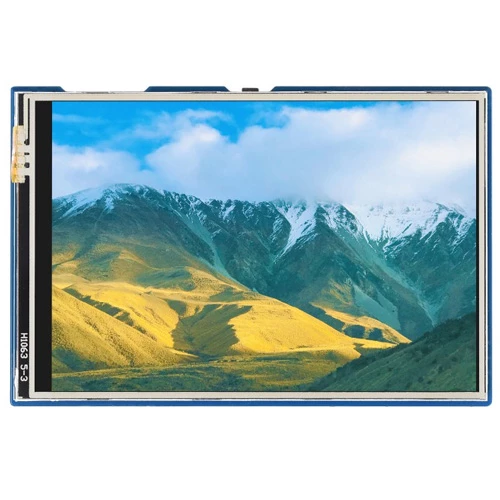

Wave Pi Pico 3.5" Resistive Touch Display
The 3.5-inch resistive touch display module is designed for Raspberry Pi Pico, offering a 480×320 resolution IPS screen with 65K colors for clear and vibrant visuals. Featuring an SPI interface, it utilizes the ILI9488 driver and XPT2046 touch controller, ensuring smooth performance and accurate touch response. The onboard microSD card slot allows for easy image storage and display, while the programmable backlight provides power-saving functionality.
This module directly connects to Raspberry Pi Pico via an onboard female pin header, reducing wiring complexity. With C/C++ and MicroPython support, it includes development resources and examples, making it ideal for projects requiring a responsive touchscreen interface.
Quick Spec
- Operating Voltage: 5V
- Communication Interface: SPI (max 60MHz write speed)
- Display Panel: IPS
- Resolution: 480×320 pixels
- Pixel Size: 0.153 × 0.153 mm
- LCD Driver: ILI9488
- Touch Controller: XPT2046
- MicroSD Card Slot: Supports image storage and display
- Backlight Control: Programmable for power efficiency
- Onboard Connectivity: Female pin header for direct Raspberry Pi Pico attachment
- Display Size: 73.44 × 48.96mm
- Dimensions: 86 × 57.2mm

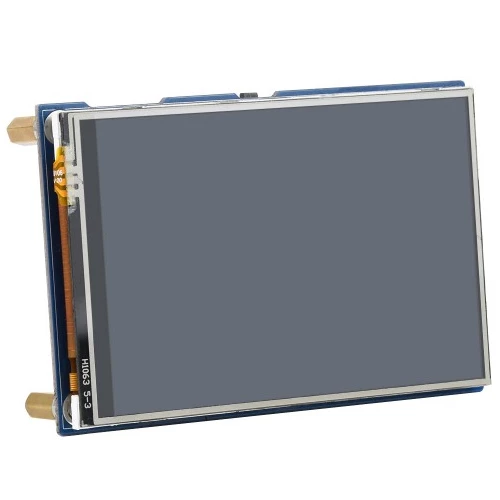

Dimensions
Pinout

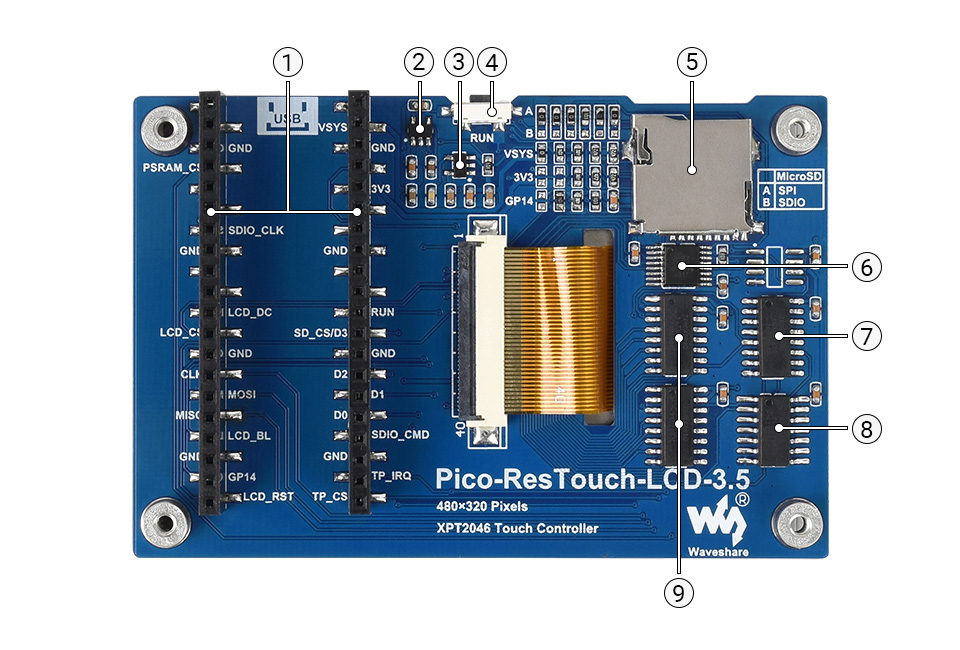

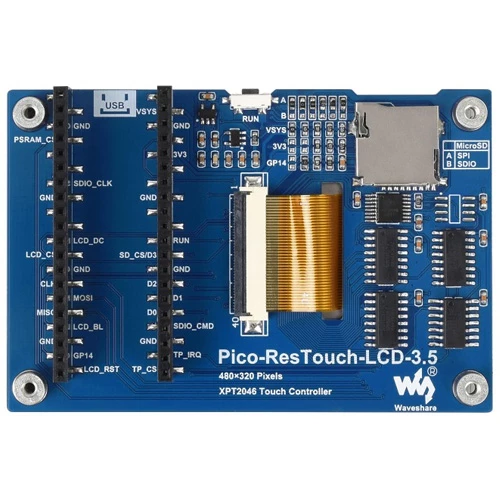

Board Layout
- Rapsberry Pi Pico header
- CAT6219: LCD backlight power chip
- RT9193-33: 3.3V linear voltage regulator
- Pico reset button
- MicroSD card slot
- XPT2046: resistive touch controller
- 74HC4040: counter chip, for clock frequency division
- 74HC04D: inverter chip
- 74HC4094: serial data to parallel data converter
Resources
Shipping List
- 1 x Wave Pi Pico 3.5" Resistive Touch Display
- 1 x Standoff pack
Wave Pi Pico 3.5" Resistive Touch Display
- Brand: Waveshare
- Product Code: W19907
- Weight: 0.082kg
- Product Status : Active
