• Description

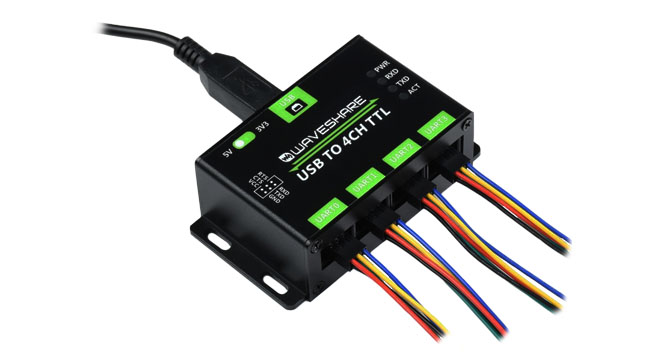

Wave Industrial USB TO 4CH UART TTL Converter

The Wave Industrial USB TO 4CH UART TTL Converter extends USB to 4CH TTL (UART) with hardware flow control, which allows concurrent and independent communication for each channel. The module has an onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs and provides over-current/over-voltage proof, improves shock resistance. The module has onboard IO protection circuit for surge suppress and ESD protection, allowing safe and stable communication. The onboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level.

Quick Spec

• Working Voltage: 5V
• Working Current: 32mA
• Serial Baud rate: 1200bps ~ 460800bps
• TTL Voltage: 3.3V / 5V (configurable)
• Working Temperature: -40°C ~ 85°C
• Supported OS: Mac OS, Linux, Windows 11/10/8.1/8/7, Android

Dimensions

Interface

Indicators Description

• PWR: power indicator, lights up while the USB is connected and voltage is detected
• RXD: receiving indicator, lights up while the device port is receiving data
• TXD: sending indicator, lights up while the USB port is sending data
• ACT: status indicator, lights up while the converter is properly operating

Pinout Definition

• VCC: 5V or 3.3V output, configured by switch
• GND: Ground
• TXD: Connecting to MCU.RXD
• RXD: Connecting to MCU.TXD
• RTS: Connecting to MCU.CTS
• CTS: Connecting to MCU.RTS

Resources

• Product Page
• Product Wiki
• CH343 Datasheet
• CH343 VCP Driver for Windows
• CH343 Driver for MacOS

Shipping List

• 1 x USB TO 4CH TTL
• 1 x USB cable (~1.2m)
• 4 x 6-Pin squid wire (~20cm)

Wave Industrial USB TO 4CH UART TTL Converter

• Brand: Waveshare
• Product Code: W21619
• Weight: 0.193kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R285.00 (Inc Tax: R327.75)
