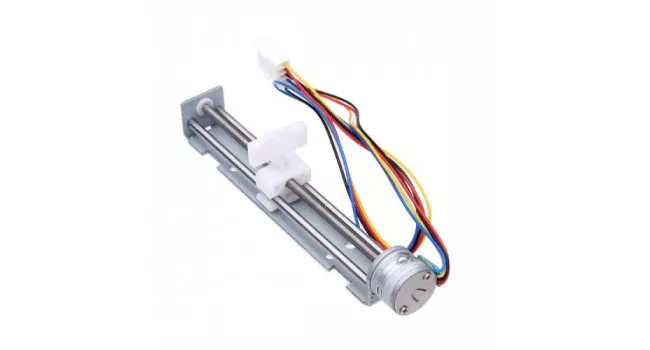

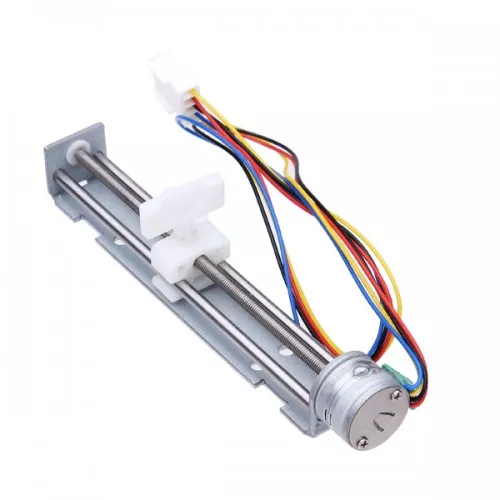

Stepper motor + slider 90mm
DC 4-9V Drive Stepper Motor Screw With Nut Slider 2 Phase 4 Wire. Our Pololu 1182 Stepper driver will be a good match.
Quick Spec
- Motor Type: 2 phase 4 wire
- Driving Voltage: DC 4-9V/500mA
- Screw Length: 90mm
- Screw Diameter: 3mm
- Slider Width: 15mm
- Effective Stroke: 80mm
- Screw Pitch: 0.5mm
- Step Angle: 1.8 °
- Stage Size: 105 x 15mm
- Wiring: Blue A+, Black A-, Red B+, Yellow B-
Shipping List
- 1 x Slider
- 1 x Stepper Motor
Stepper motor + slider 90mm
- Brand: Generic
- Product Code: STEP90
- Weight: 0.048kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R212.00 (Inc Tax: R243.80)
