• Description

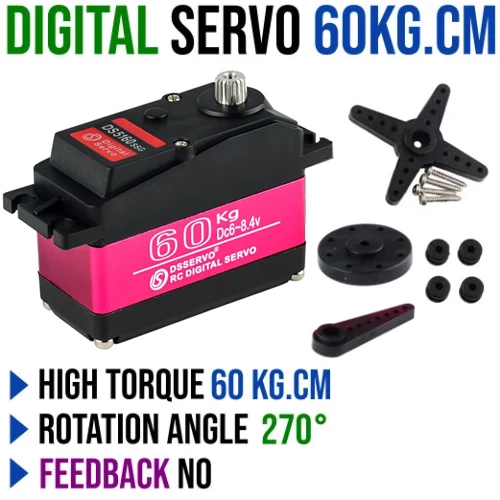

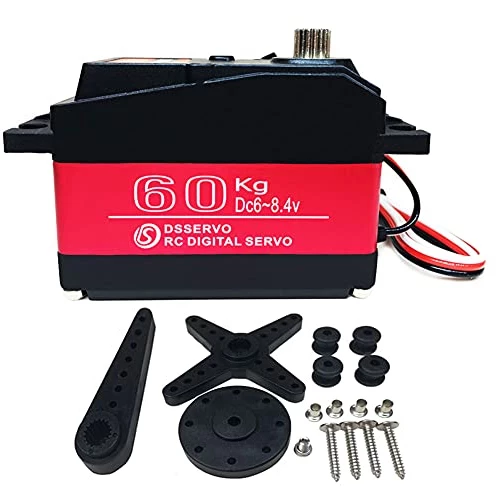

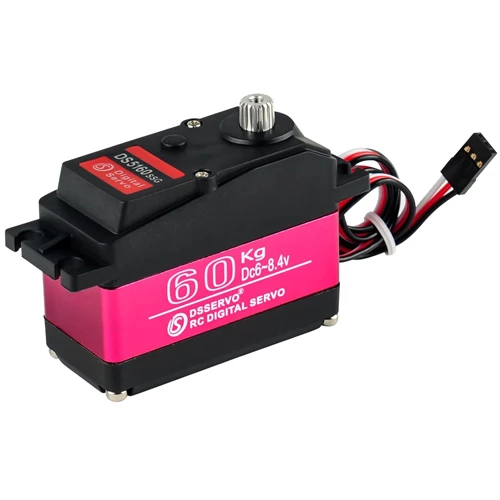

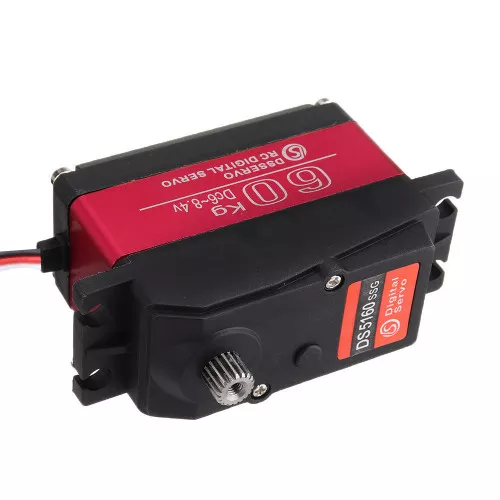

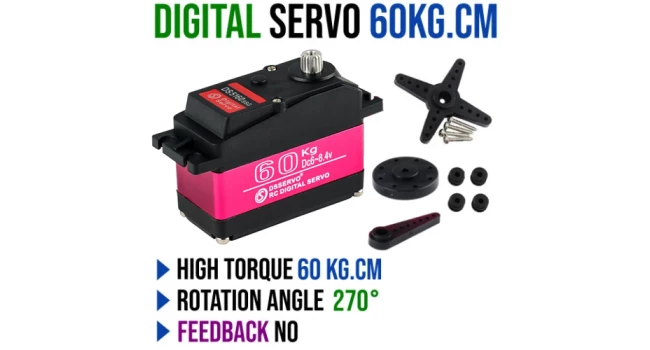

DS Servo 60kg.cm 270 Degree

This high-torque 60kg.cm digital servo is designed for demanding robotics, automation, and motion-control applications requiring strength, accuracy, and durability. Built in a standard-size form factor, it features robust metal gears and dual ball bearings to ensure smooth operation and long service life under heavy loads.

With a wide 270° operating angle, this servo provides extended motion range for advanced positioning tasks such as robotic arms, steering systems, mechanical linkages, industrial mechanisms, and custom automation projects. Operating between 6V and 8.4V, it delivers up to 70kg.cm of torque at higher voltages, offering powerful and precise control for high-load applications.

Engineered with a digital control system and a tight 3μs dead band setting, the servo ensures accurate positioning, improved holding torque, and responsive performance across its full operating range.

Quick Spec

• Operating Voltage: 6 – 8.4V
• Operating Angle: 270°
• Speed:
• 0.17 sec / 60° @ 6V
• 0.15 sec / 60° @ 7.4V
• 0.13 sec / 60° @ 8.4V
• Torque:
• 58kg.cm @ 6V
• 65kg.cm @ 7.4V
• 70kg.cm @ 8.4V
• Gear Type: Metal gears
• Bearings: Dual ball bearing
• Wire Length: 320mm
• Weight: 162g
• Dead Zone Setting: 3μs

Dimensions

Shipping List

• 1 x DS Servo 60kg.cm 270 Degree
• 1 x Nylon Servo Accessories

DS Servo 60kg.cm 270 Degree

• Brand: Generic
• Product Code: DS5160-270
• Weight: 0.182kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	In Stock	A15-02
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R366.00 (Inc Tax: R420.90)
