• Description

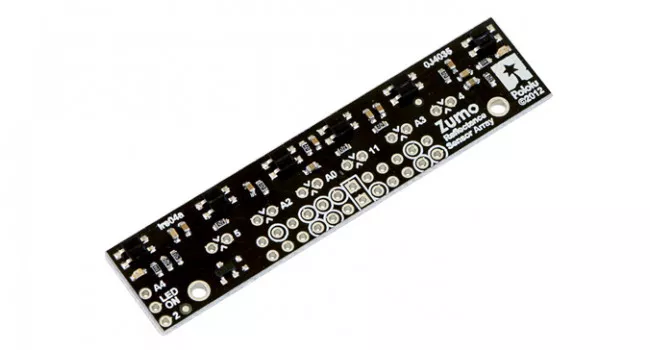

Zumo Reflective Array Sensor

The Zumo Reflective Array Sensor provides an easy way to add line sensing or edge detection to a Zumo robot. It features six separate reflectance sensors, each consisting of an IR emitter coupled with a phototransistor that responds based on how much emitter light is reflected back to it. The two outside sensors are positioned at the very edges of the module to maximize their usefulness as edge detectors (e.g. for seeing the white edge of a sumo ring) while the four inner sensors are closer together for better detecting lines.



The sensor array plugs into the front expansion header of the Zumo shield which provides it with power and the necessary I/O connections. The default I/O connections are to pins that are otherwise unused by the Zumo shield, but the sensor module makes it possible to remap these pins or disconnect specific sensors altogether to free up I/O lines.

Pinout

Resources

• Product Page
• Schematic
• Mechanical Diagram
• Adding the Zumo Reflective Array Sensor

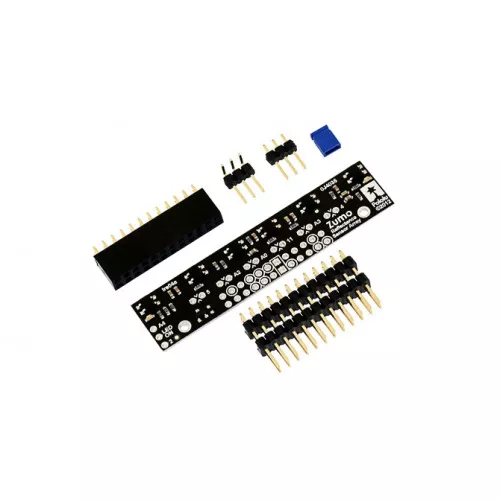

Shipping List

• 1 X Zumo Reflective Array Sensor
• 2 X 12 Pin Male Headers
• 2 X 12 Pin Female Headers
• 1 X 3 Pin Male Header

Zumo Reflective Array Sensor

• Brand: Pololu Electronics
• Product Code: 1419
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R74.00 (Inc Tax: R85.10)
