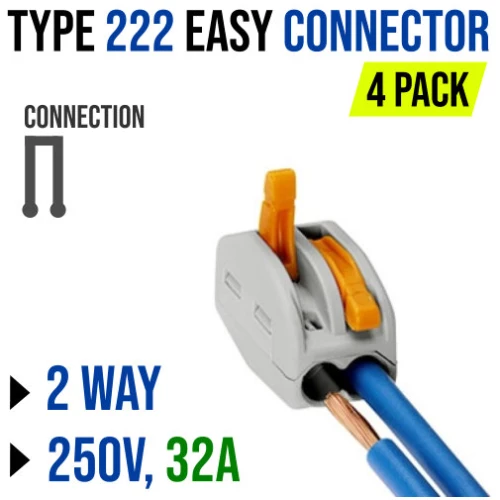

Connector Type 222 - 2 Pin (4 Pack)

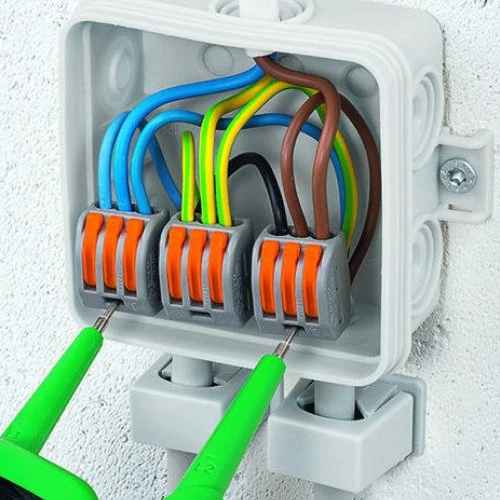

The compact splicing connector for all conductor types: By using the 222 Series splicing connectors, you can connect solid conductors with a cross section of 0.08 to 4 mm² and fine-stranded and stranded conductors with cross sections from 0.08 to 2.5 mm². Without using any tools! Wiring is very easy: Strip 9 -- 10 mm/0.37 inches from the desired conductor, open the clamping unit via the integrated lever, and insert the conductor. In addition to standard applications in building installations, these connectors can also be fixed in position for use with mounting carriers, e.g. in distribution boxes.

222-5-P-002

Product Video

Quick Spec

  • Series: 222 Series
  • Number of Ways: 2
  • Current Rating: 32A
  • Termination Method: Spring Cage
  • Wire Size: 28 - 12 AWG
  • Material: Polyamide
  • Voltage Rating: 600 V
  • Maximum Operating Temperature: +85°C
  • Enclosed
  • Net Weight: 26g

Dimensions

222-2-P-003

Resources

Shipping List

  • 4 x Connector Type 222 - 2 Pin


Connector Type 222 - 2 Pin (4 Pack)

  • Brand: Generic
  • Product Code: 222-2P
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock FD041
    Stellenbosch Out Of Stock C0201
  • R10.00 (Inc Tax: R11.50)
