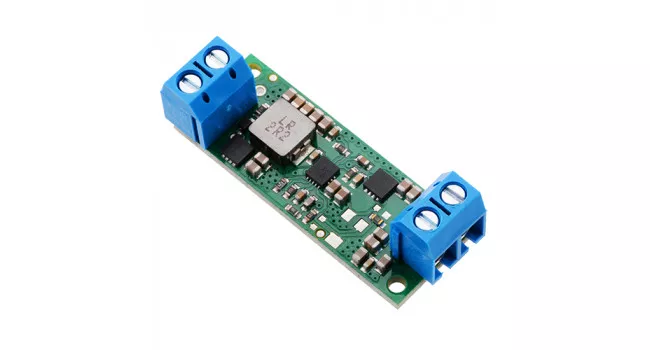

Pololu 12V 8A Step Up Regulator U3V70F12

  • Brand: Pololu Electronics
  • Product Code: 2895
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock UL273
    Stellenbosch In Stock A0176
  • R178.00 (price excl. VAT)


Pololu 12V 8A Step Up Regulator U3V70F12

The U3V70x boost (step-up) voltage regulators are high-current, high-efficiency synchronous switching regulators that generate higher output voltages from input voltages as low as 2.9 V. The regulators actively limit the instantaneous input currents to 10 A, and the input current can typically be as high as 8 A for several seconds before the thermal protection activates. Input currents of around 6 A can typically be maintained for many minutes without triggering thermal shutdown, though the actual performance depends on depending on the input and output voltages as well as external factors such as ambient temperature and airflow. For boost regulators, the output current equals the input current times the efficiency times the ratio of VIN to VOUT, so the more you are boosting, the lower the maximum output current will be.

These regulators feature a variety of built-in protections, including reverse voltage protection to keep your load safe in the event power is accidentally connected backward, and unlike most boost regulators, these units offer a true shutdown option that turns off power to the load (with typical boost regulators, the input voltage will pass directly through to the output when they are disabled).

Quick Spec

  • Minimum Operating Voltage: 2.9V
  • Maximum Operating Voltage: 12V
  • Maximum Input Current: 10A (Instantaneous)
  • Output Voltage: 12V
  • Reverse Voltage Protection
  • Output Type: Fixed 12V

Dimensions

2891-005

U3V70F12 Connections

2895-005

Resources

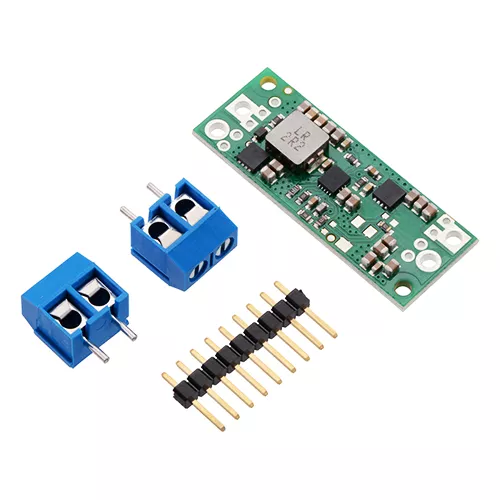

Shipping List

  • 1 X Pololu 12V 8A Step Up Regulator U3V70F12
  • 2 X 2 Way Screw Terminal
  • 1 X 9 Pin Header


Tags: pololu, 12v, 8a, step, up, step up, regulator, u3v70f12
