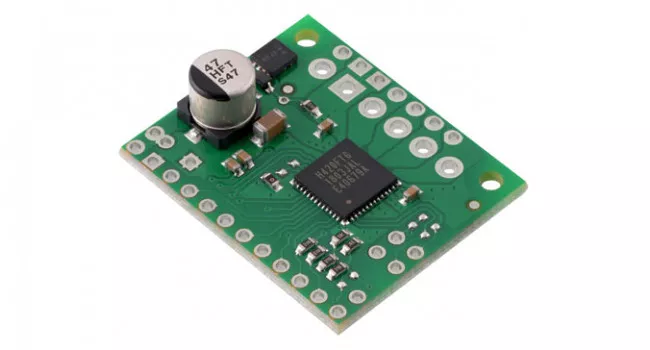

Pololu Dual/Single Motor Driver Carrier 3.4A

The TB67H420FTG from Toshiba is an H-bridge motor driver IC that can be used for bidirectional control of one or two brushed DC motors at 10 V to 47 V. It can supply up to about 1.7 A continuously to each of two separate motors or about 3.4 A to a single motor, and it can tolerate peak currents up to 4.5 A per channel (dual) or 9 A (single) for a few seconds, making it a good choice for small- to medium-sized motors that run at higher voltages. The TB67H420FTG is a great IC, but its small surface-mount package makes it difficult for the typical student or hobbyist to use; our breakout board makes it easy to use with standard solderless breadboards and 0.1″ perfboards. Since this board is a carrier for the TB67H420FTG, we recommend careful reading of the TB67H420FTG datasheet (460k pdf). The board ships populated with SMD components, including the TB67H420FTG and a reverse battery protection circuit.

Quick Spec

• Motor Driver: TB67H420FTG
• Motor Channels: 2
• Minimum Operating Voltage: 10V
• Maximum Operating Voltage: 47V (reverse voltage protection only works up to 40V)
• Continuous Output Current per Channel: 1.7A
• Continuous Paralleled Output Current: 3.4A
• Reverse Voltage Protection
• Dimensions: 30.5 x 25.4mm
• Net Weight: 8g

Pinout

Schematic

Code

Resources

• Product Page
• Toshiba TB67H420FTG Datasheet
• Schematic
• TB67H420FTG Documentation

Shipping List

• 1 x Pololu Dual/Single Motor Driver Carrier 3.4A

Pololu Dual/Single Motor Driver Carrier 3.4A

• Brand: Pololu Electronics
• Product Code: 2999
• Weight: 0.008kg
• Product Status : Active
