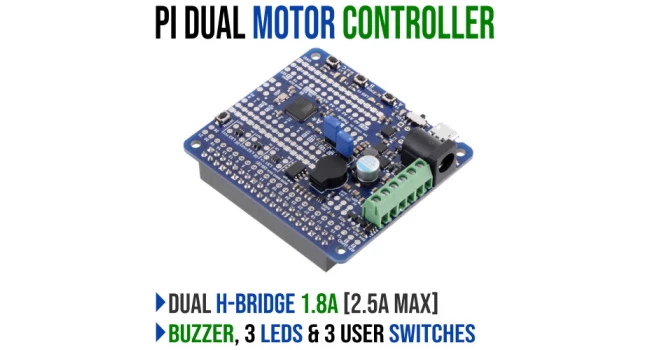

Pi Robot Controller LV with Dual H-Bridge 1.8A (Max 2.5A)
This programmable module combines with a Raspberry Pi to serve as the control center of a small robot or electronics project. Its ATmega32U4 AVR microcontroller comes preloaded with an Arduino-compatible bootloader, and the board includes dual motor drivers that can deliver 1.8 A per channel to two brushed DC motors. An efficient voltage regulator (2.7 V to 11 V input) and level shifters enable it to power and communicate with a Raspberry Pi. This version is assembled with selected through-hole connectors and components installed for use as a Raspberry Pi add-o
Quick Spec
- 2 x DRV8838 Dual H-Bridge (1.8 A per channel)
- Dedicated ATmega32U4 Robot Controller
- Optional buzzer for simple sounds and music
- 3 x Programmable Pushbuttons
- 3 x Programmable LED's
- Integrated Level Shifter 5V logic to 3.3V Raspberry Pi
- Provides 5 V power to Raspberry Pi
- Dimensions: 65mm X 56mm

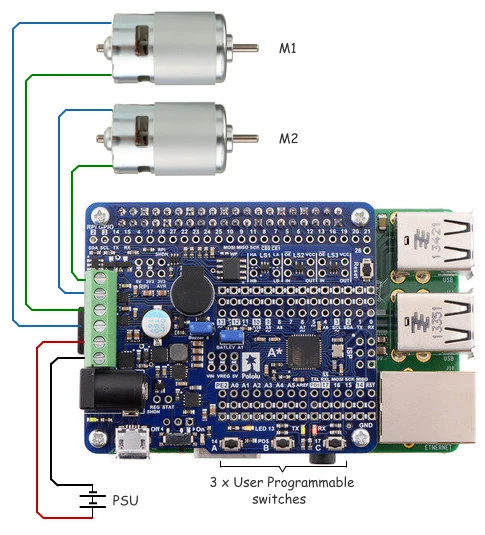

Board Layout
Resources
Shipping List
- 1 x Pi Robot Controller LV with Dual H-Bridge 1.8A (Max 2.5A)
Pi Robot Controller LV with Dual H-Bridge 1.8A (Max 2.5A)
- Brand: Pololu Electronics
- Product Code: 3117
- Weight: 0.029kg
- Product Status : Active
