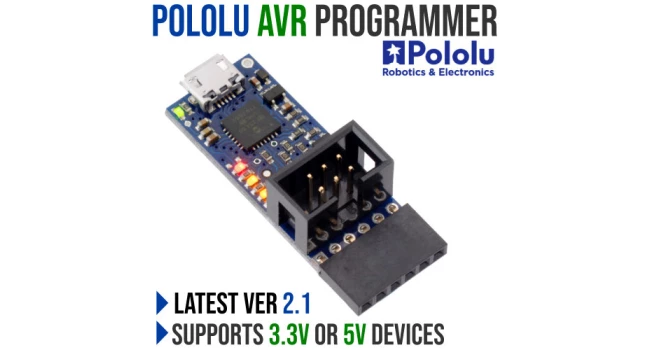

Pololu USB AVR Programmer V2.1

The Pololu USB AVR Programmer v2.1 is a compact, low-cost in-system programmer (ISP) for AVR microcontrollers from Atmel (now a part of Microchip). The programmer provides an interface for transferring a compiled AVR program from your computer to the target AVR’s non-volatile memory, allowing it to run the program. It is a good solution for programming AVR-based controllers like the A-Star 328PB Micro and Orangutan robot controllers. It can also be used to update, replace, or remove the bootloader on Arduino boards and the Arduino-compatible A-Star controllers. This programmer is designed to work well with both 3.3 V and 5 V devices, and it can even be configured to provide power to the target device in low-power systems.

The programmer connects to your computer’s USB port via a standard USB A to Micro-B cable (not included) and communicates with your programming software, such as Atmel Studio, AVRDUDE, or the Arduino IDE, through a virtual COM port using the STK500 protocol. The programmer connects to your target device via an included 6-pin ISP programming cable. The programmer also acts as a USB-to-TTL serial adapter, providing a TTL-level serial port that can be used to communicate with other serial devices from your computer.

The Pololu USB AVR Programmer v2.1 is a drop-in replacement for the older Pololu USB AVR Programmer v2 with several hardware improvements.

3172 003

Quick Spec

  • Connects to a computer through USB via a USB A to Micro-B cable (not included)
  • Emulates an STK500 programmer through virtual COM port interface
  • Works with standard AVR programming software, including Atmel Studio, AVRDUDE, and the Arduino IDE
  • Configuration software available for Windows, Mac OS X, and Linux
  • Supports both 3.3 V and 5 V devices; can automatically switch operating voltage based on detected target VCC
  • Can optionally power the target at 3.3 V or 5 V in low-power systems
  • USB-to-TTL serial adapter functionality for general-purpose serial communication
  • Provides a 100 kHz clock output, which can be useful for reviving misconfigured AVRs
  • All I/O pins are protected with 470 Ω resistors
  • 6-pin ISP cable and a 1×6 double-sided male header included

Dimensions

3172 004

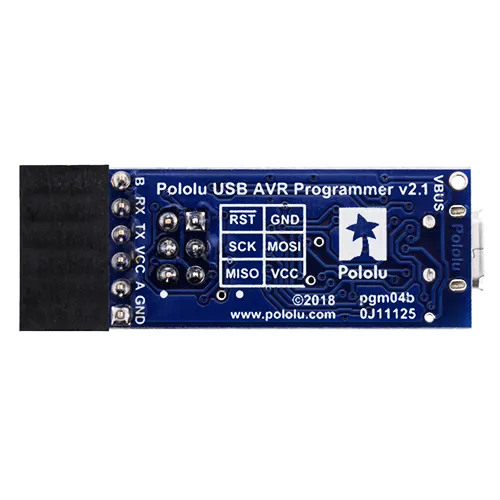

Pin Connections

3172 005

Resources

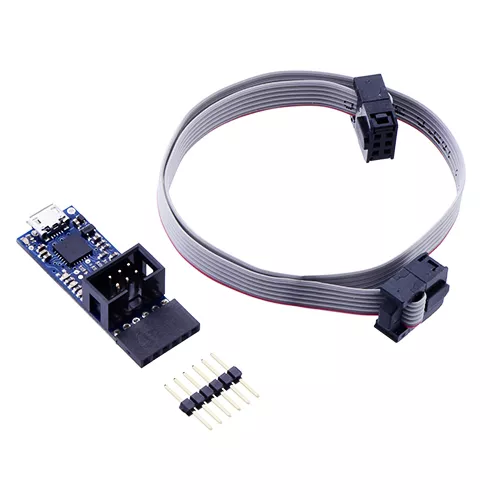

Shipping List

  • 1 X Pololu USB AVR Programmer V2.1
  • 1 X 6-pin ISP cable


Pololu USB AVR Programmer V2.1

  • Brand: Pololu Electronics
  • Product Code: 3172
  • Weight: 0.013kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock GG236
    Stellenbosch In Stock A0049
    Bulk Location No Stock

    We ship free of charge between branches to complete your order.

  • R246.00 (Inc Tax: R282.90)
