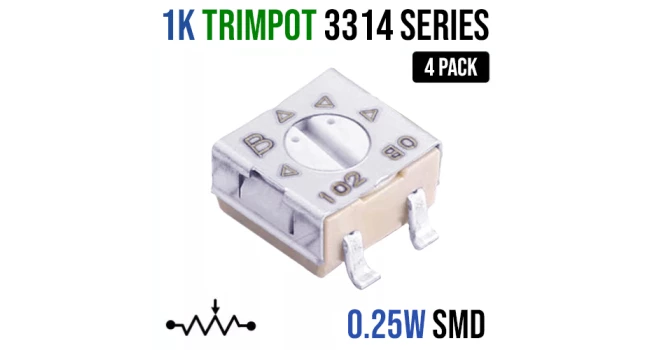

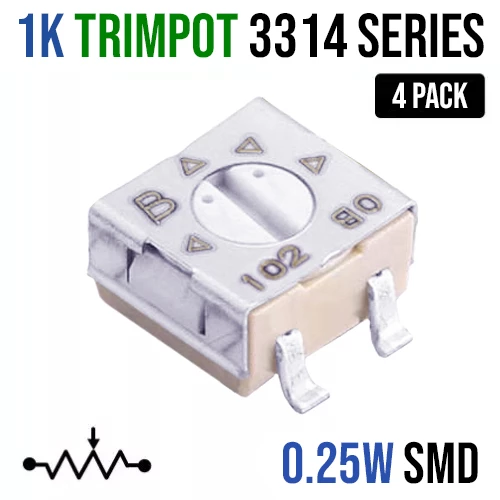

Micro Trimpot 1K SMD 3314 Series (4 Pack)

Trimpots are potentiometers which need infrequent adjustment. They are often used to calibrate a device or circuit after manufacturing, and often require a special tool for adjustment. Theses are 1kΩ smd micro trimpots with a power rating of 0.25W.

Quick Spec

  • Maximum Resistance: 1kΩ
  • Mounting Type: Surface Mount
  • Number of Turns: 1
  • Orientation: Top Adjust
  • Power Rating: 0.25W
  • Termination Style: Solder Pad
  • Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Operating Temperature: -40 ~ +100°C
  • Net Weight: 1g

Dimensions

3314-G-1-103-E-003

PCB Footprint

3314-G-1-103-E-004

Resources

Shipping List

  • 4 x Micro Trimpot 1K SMD 3314 Series


Micro Trimpot 1K SMD 3314 Series (4 Pack)

  • Brand: Generic
  • Product Code: 3314G-1-102E
  • Weight: 0.002kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock G15
    Stellenbosch In Stock A0013
    Bulk Location No Stock

    We ship free of charge between branches to complete your order.

  • R12.00 (Inc Tax: R13.80)
