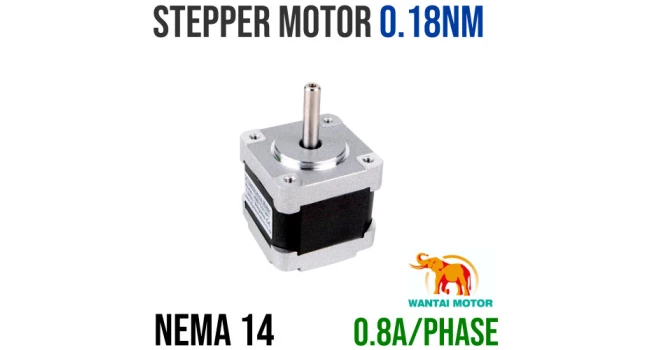

Stepper Motor 0.18Nm NEMA14 0.8A per Phase
This hybrid bipolar stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 0.8A per Phase at 10 V, allowing for a holding torque of 1 kg-cm (14 oz-in). The motor has four color-coded wires terminated with bare leads: black and green connect to one coil; red and blue connect to the other. It can be controlled by a pair of suitable H-bridges (one for each coil), but we recommend using a bipolar stepper motor driver.
Quick Spec
- Size: 35 mm square × 28 mm, not including the shaft (NEMA 14)
- Weight: 140 g (5 oz)
- Shaft diameter: 5 mm
- Steps per revolution: 200
- Current rating: 800 mA per coil
- Voltage rating: 10 V
- Resistance: 6.8 Ω per coil
- Holding torque: 2.65 NM/cm
- Inductance: 13.5 mH per coil
- Lead length: 30 cm (12″)
- Output shaft supported by two ball bearings
Shipping List
- 1 x Stepper Motor 0.18Nm NEMA14 0.8A per Phase
Stepper Motor 0.18Nm NEMA14 0.8A per Phase
- Brand: Wantai
- Product Code: 35BYG312P1
- Weight: 0.173kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R188.00 (Inc Tax: R216.20)
