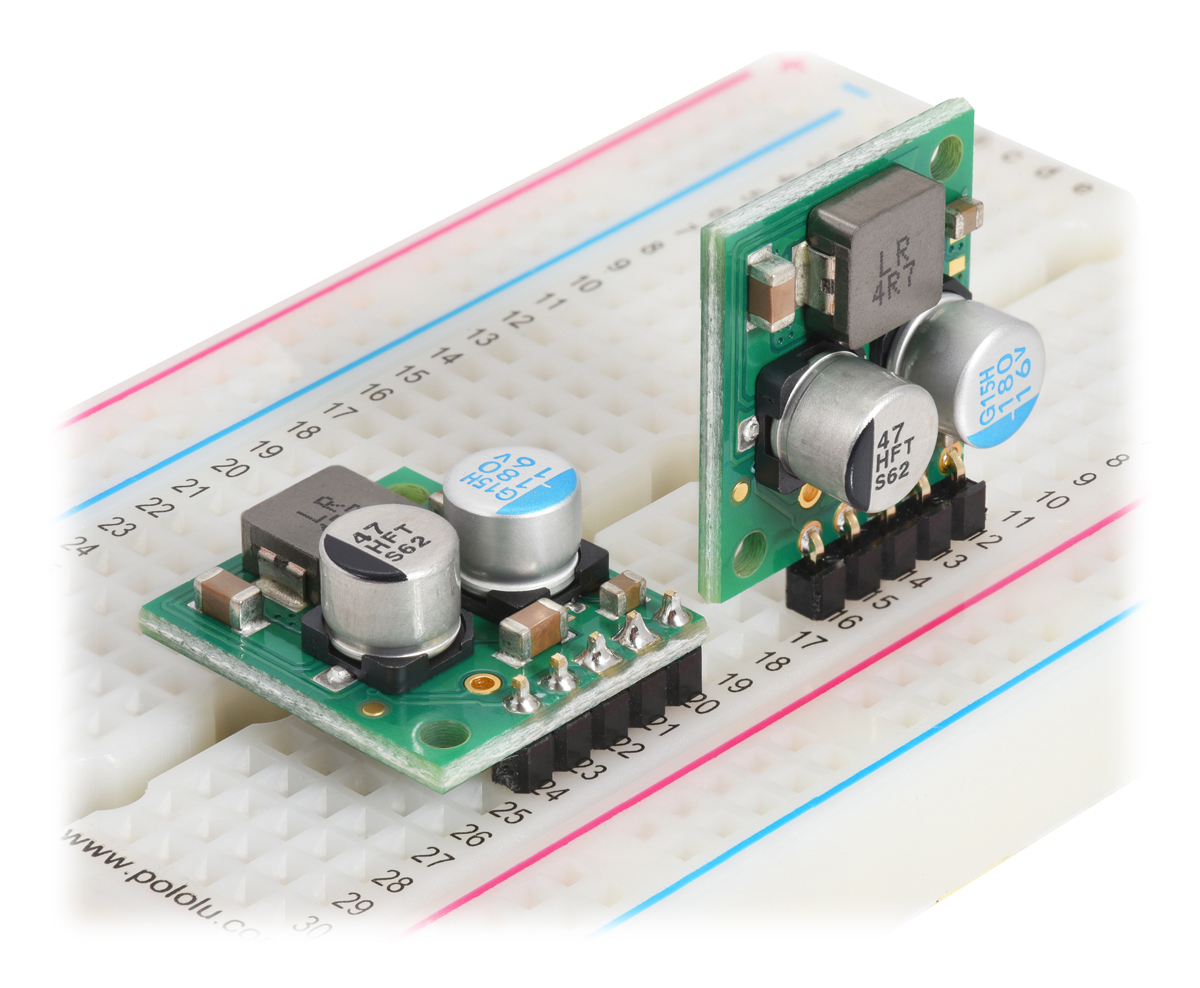

Pololu Regulator - OUT 15V 2.7A, IN 15~45V

The D30V3x line of buck (step-down) voltage regulators generates lower output voltages from input voltages as high as 45V. They are switching regulators (also called switched-mode power supplies (SMPS) or DC-to-DC converters), which makes them much more efficient than linear voltage regulators, especially when the difference between the input and output voltage is large. These regulators can typically support continuous output currents of 2.7A. In general, the available output current decreases as the input and output voltages increase.



The regulators have reverse voltage protection up to 40 V, input under-voltage lockout, over-current protection, and short-circuit protection. A thermal shutdown feature also helps prevent damage from overheating and a soft-start feature limits the inrush current and gradually ramps the output voltage on startup.

Quick Spec

• Minimum Operating Voltage: 15V
• Maximum Operating Voltage: 45V
• Continuous Output Current: 2.7A
• Output Voltage: 15V
• Reverse voltage protection (up to 40V)
• Maximum Quiescent Current: 16mA
• Output Type: fixed 15V
• Dimensions: 17.8 x 20.3mm

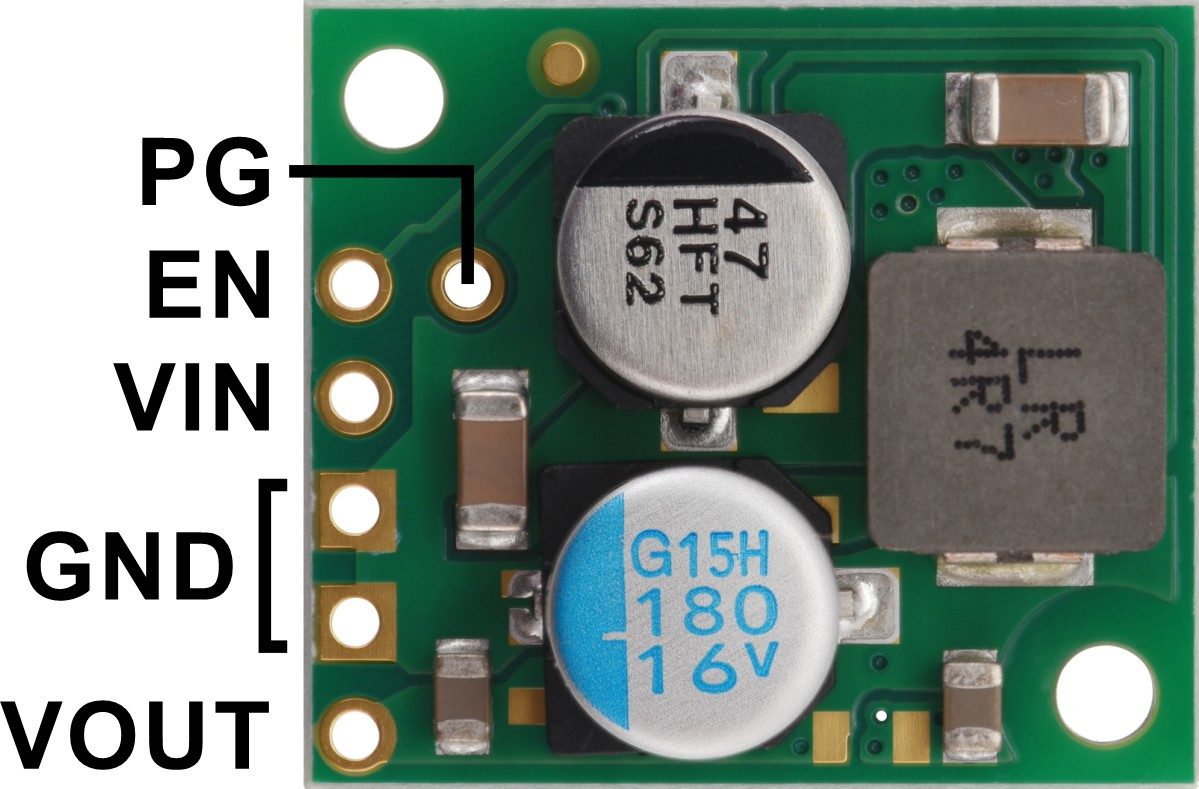

Pinout

• PG: Power Good (an open-drain output that goes low when the regulator’s output voltage either rises more than 7.5% (typical) above or falls more than 9% (typical) below the nominal voltage)
• EN: Enable
• VIN: Input Voltage
• GND: Ground
• VOUT: Output Voltage

Resources

• Product Page

Shipping List

• 1 x Pololu Regulator - OUT 15V 2.7A, IN 15~45V
• 1 x 6-Pin SIL Male Header - Straight
• 1 x 6-Pin SIL Male Header - Right Angle (90 Deg)
