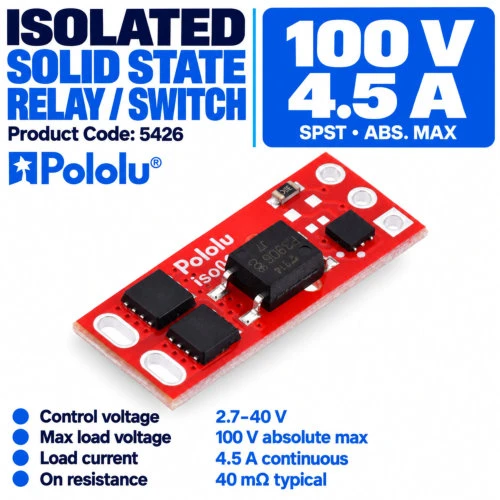

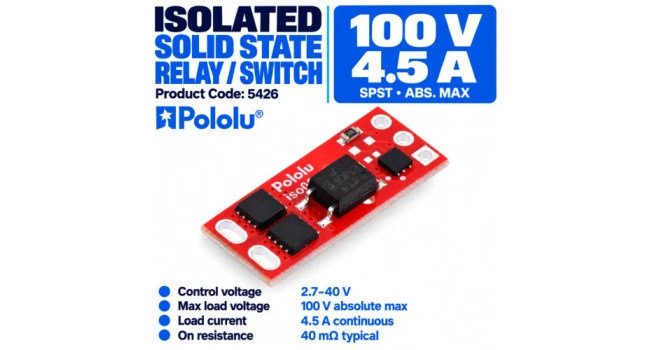

Pololu Isolated Solid State Relay/Switch, SPST, 100V, 4.5A
Compact isolated SPST solid-state relay switches bidirectional AC or DC loads up to 100 V and 4.5 A from a 2.7–40 V control signal, silently and reliably without mechanical contacts.
Quick Spec
- Switch Type: SPST solid-state relay
- Load Voltage: 100 V absolute maximum
- Load Current: 4.5 A continuous maximum
- Control Voltage: 2.7 V to 40 V
- Current Direction: Bidirectional AC or DC
- On Resistance: 40 mΩ typical
- Switching Time: 1 ms maximum
- Control Current: Approximately 10 mA
- Isolation: Optical galvanic isolation

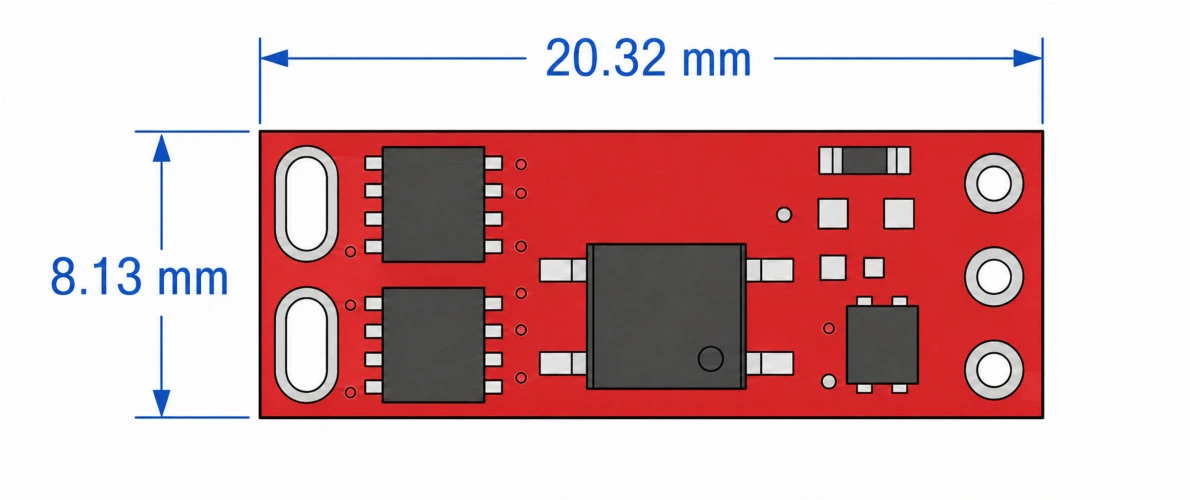

Dimensions
Resources
Shipping List
- 1x Pololu Isolated Solid State Relay/Switch, SPST, 100V, 4.5A
Pololu Isolated Solid State Relay/Switch, SPST, 100V, 4.5A
- Brand: Pololu Electronics
- Product Code: 5426
- Weight: 0.001kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | Limited Stock | GG308 |
| Stellenbosch | Limited Stock | M39 |
We ship free of charge between branches to complete your order.
-
R77.00 (Inc Tax: R88.55)
Tags: Pololu, solid state relay, isolated switch, SPST, 100V, 4.5A, MOSFET, bidirectional, relay module
