Pololu 2.5-9V Adjustable Step-Up/Step-Down Voltage Regulator S9V11E2A
Compact adjustable buck-boost regulator accepts 2–16V input and delivers a stable 2.5–9V output, supplying up to 1.7A for space-constrained battery-powered electronics, robotics, and embedded projects with ease.
Quick Spec
- Regulator Type: Step-up/step-down DC-DC converter
- Input Voltage: 2V to 16V
- Startup Voltage: 3V minimum
- Output Voltage: Adjustable from 2.5V to 9V
- Continuous Output Current: Up to 1.7A
- Startup Current Limit: Approximately 700mA
- Quiescent Current: Below 0.2mA for most operating conditions
- Control Input: Active-high enable
- Protection: Over-temperature and short-circuit protection
- Dimensions: 16.6 × 10.9

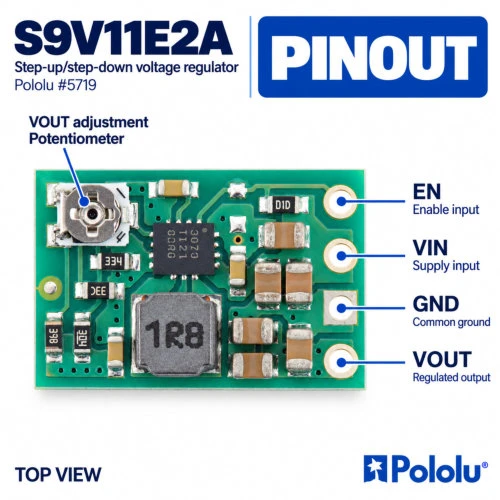

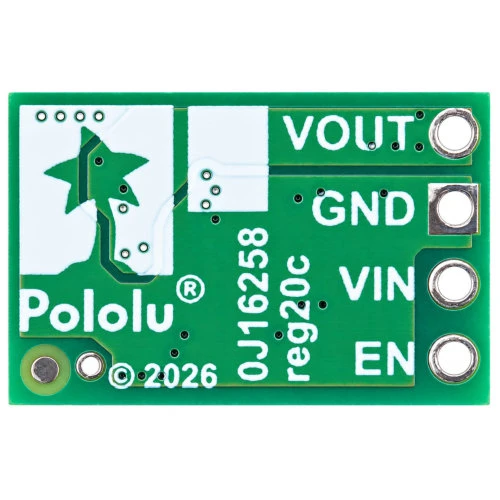

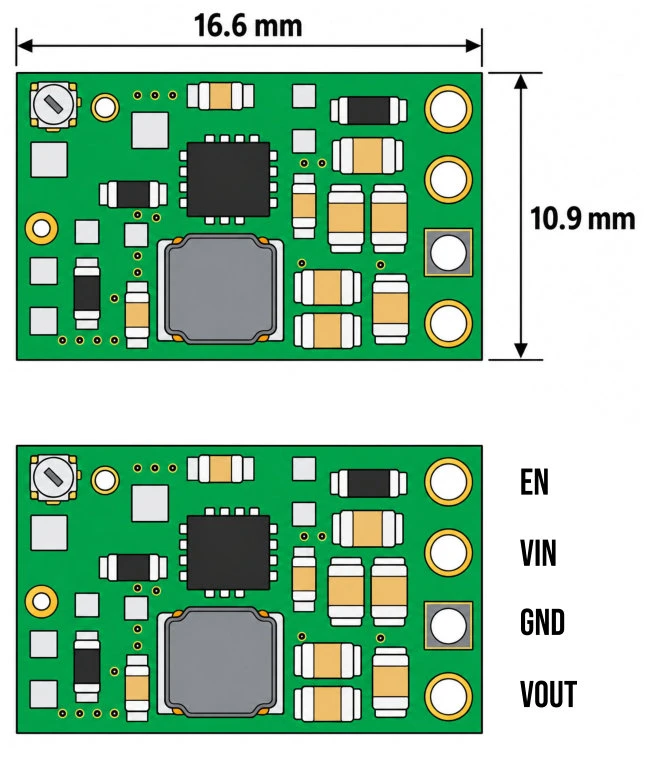

Dimensions + Pin Definitions
Resources
Shipping List
- 1x Pololu 2.5-9V Adjustable Step-Up/Step-Down Voltage Regulator S9V11E2A
Pololu 2.5-9V Adjustable Step-Up/Step-Down Voltage Regulator
- Brand: Pololu Electronics
- Product Code: 5719
- Weight: 0.002kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | GG141 |
| Stellenbosch | In Stock | V76 |
We ship free of charge between branches to complete your order.
-
R80.00 (Inc Tax: R92.00)
