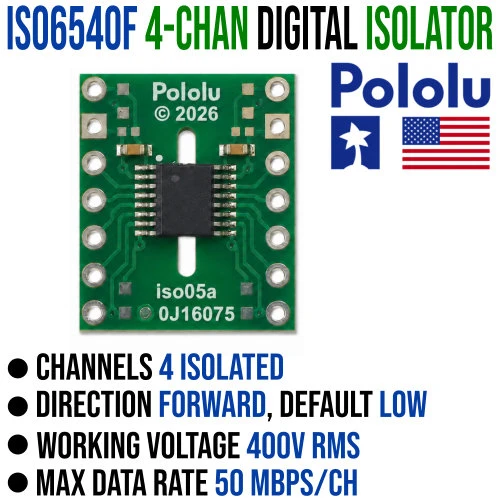

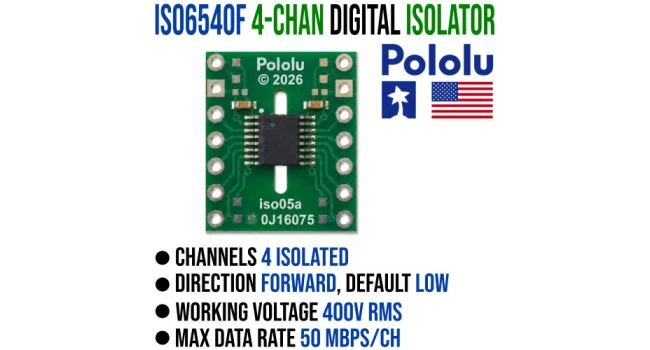

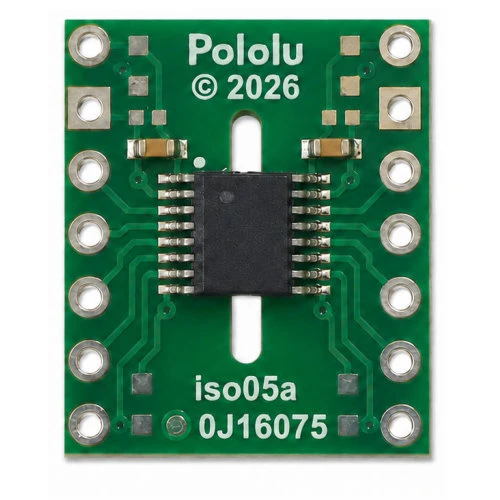

Pololu Digital Isolator 4-Channel Module - ISO6540F
The ISO6540F carrier transfers four high-speed digital signals between electrically isolated circuits, providing functional isolation, voltage-level compatibility, default-low outputs, and data rates up to 50 Mbps per channel.
Quick Spec
- Isolator IC: Texas Instruments ISO6540F
- Channel Count: 4 digital channels
- Channel Direction: 4 forward, 0 reverse
- Maximum Data Rate: 50 Mbps per channel
- Default Output State: Low
- Isolation Type: Functional galvanic isolation
- Working Voltage: 400 V RMS
- Supply Voltage: 1.71–1.89 V or 2.25–5.5 V per side

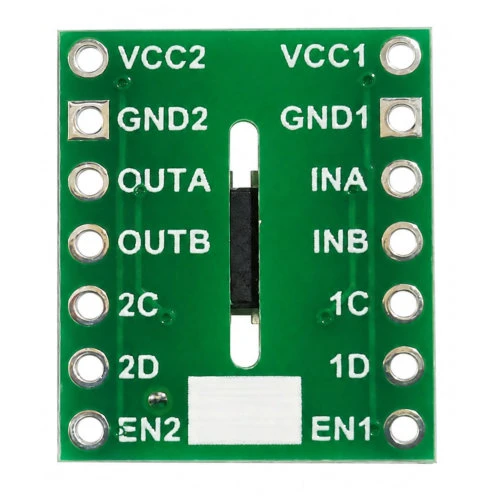

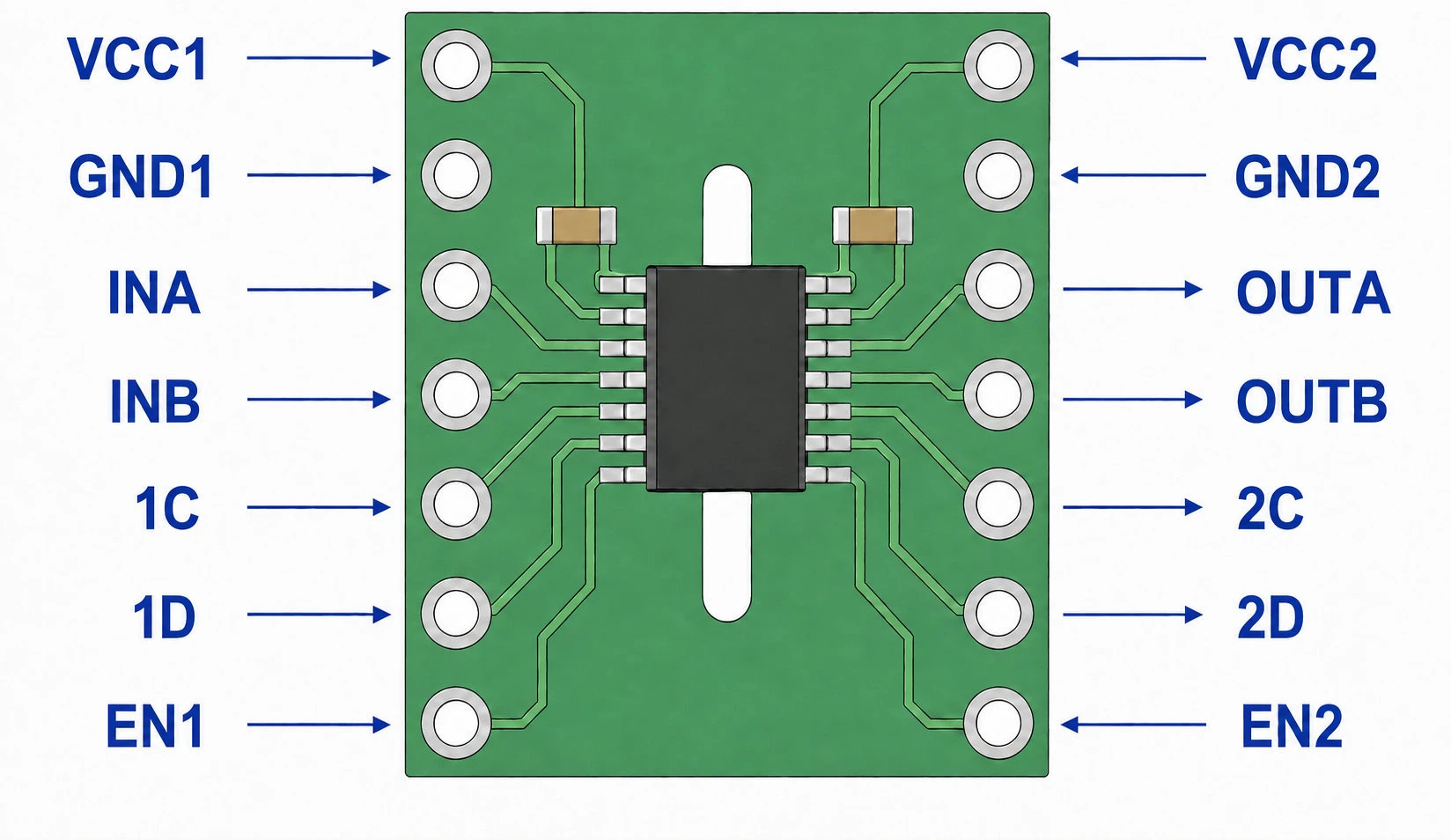

Pin definitions
Resources
Shipping List
- 1x ISO6540F 4-Channel Digital Isolator Carrier
Pololu Digital Isolator 4-Channel Module - ISO6540F
- Brand: Pololu Electronics

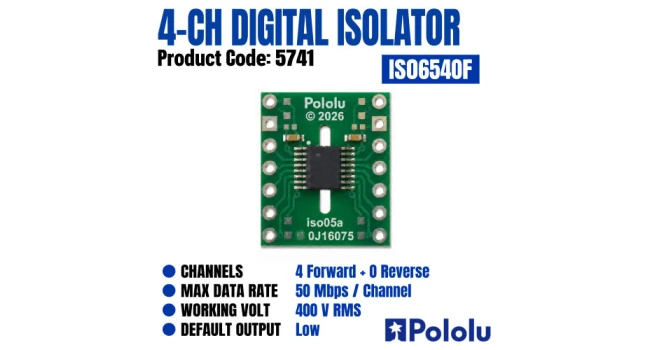

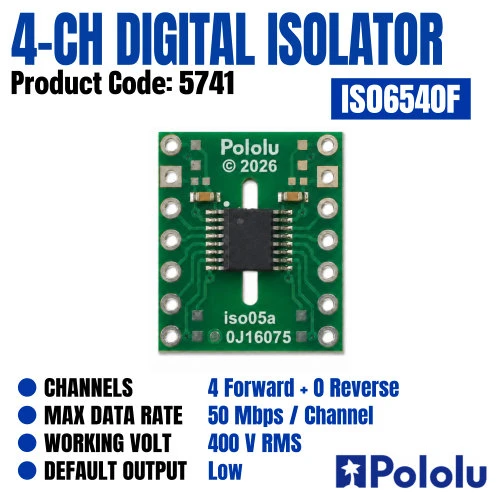

- Product Code: 5741
- Weight: 0.002kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | GG134 |
| Stellenbosch | In Stock | B0053 |
We ship free of charge between branches to complete your order.
-
R47.00 (Inc Tax: R54.05)
Tags: ISO6540F, digital isolator, 4 channel, galvanic isolation, functional isolation, level shifter, Pololu
