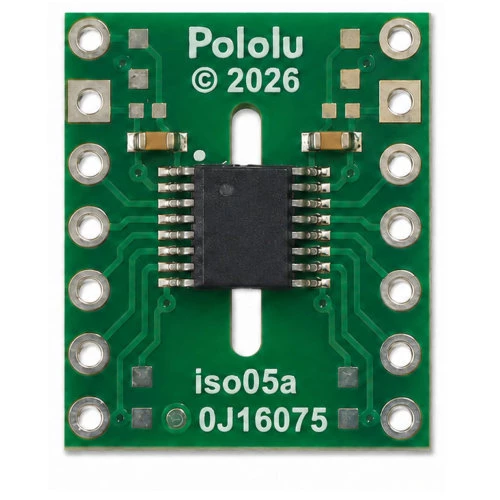

ISO6541 4-Channel Digital Isolator Carrier
The ISO6541 carrier provides four high-speed, galvanically isolated digital channels with three forward and one reverse path, supporting separate logic voltages while helping protect connected circuits from electrical faults and interference.
Quick Spec
- Isolation Type: Galvanic functional isolation
- Digital Channels: 4
- Channel Direction: 3 forward and 1 reverse
- Maximum Data Rate: 50 Mbps per channel
- Working Isolation Voltage: 400 VRMS
- Operating Voltage: 1.71–1.89 V or 2.25–5.5 V per side
- Default Output State: High
- Independent Supplies: Separate VCC and ground for each side

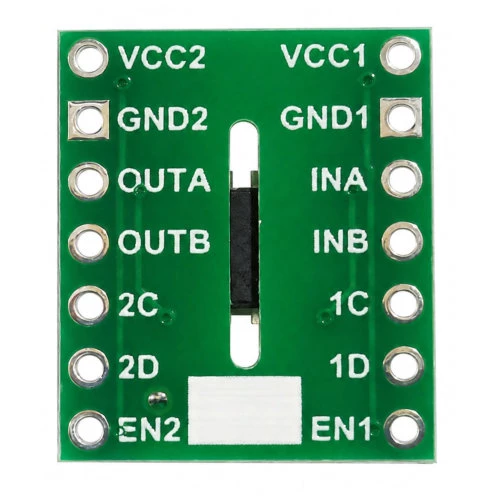

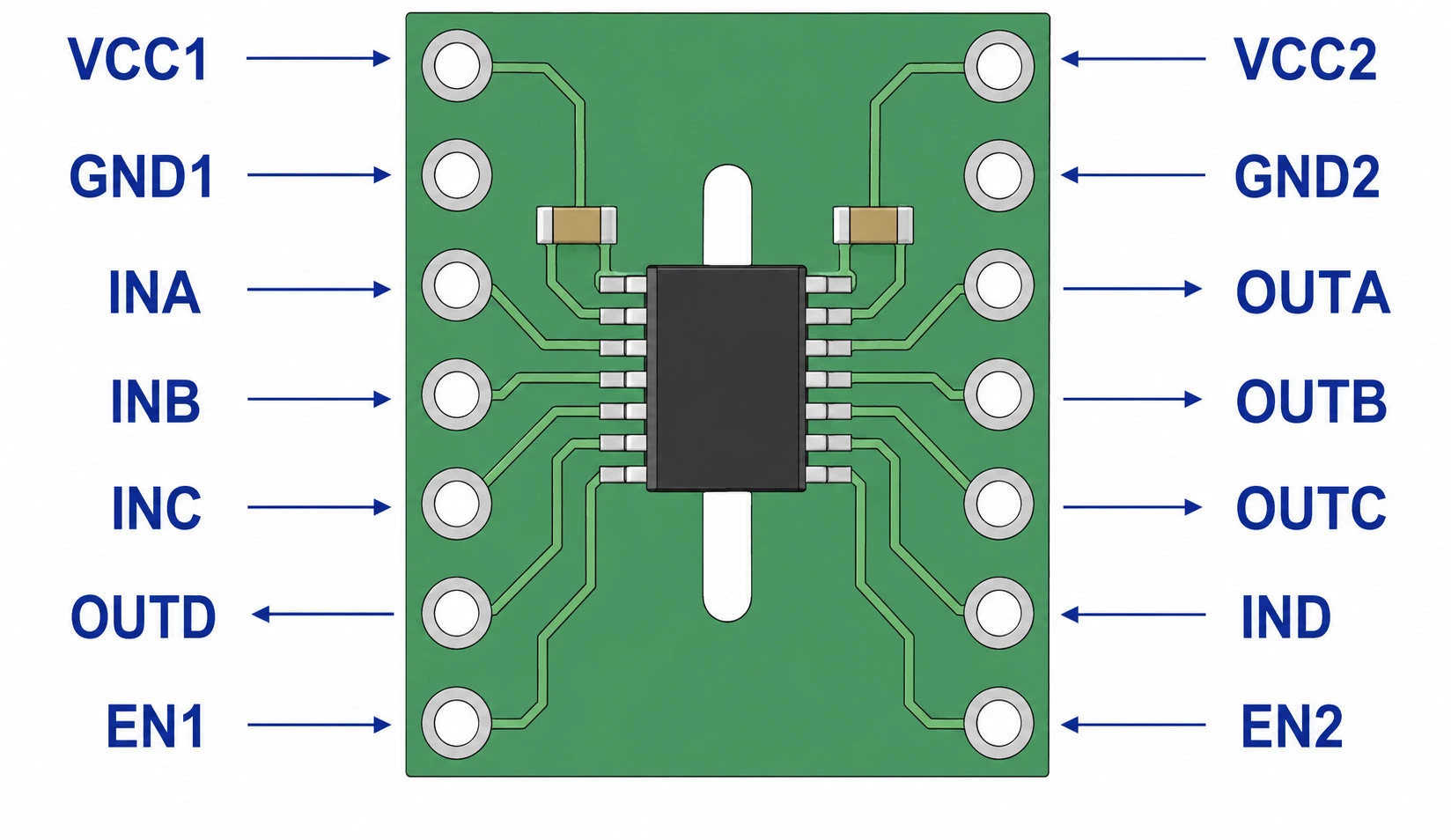

Pin Definitions
Resources
Shipping List
- 1x ISO6541 4-Channel Digital Isolator Carrier
ISO6541 4-Channel Digital Isolator Carrier
- Brand: Pololu Electronics
- Product Code: 5742
- Weight: 0.002kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | Limited Stock | GG315 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R50.00 (Inc Tax: R57.50)
Tags: ISO6541, digital isolator, galvanic isolation, 4 channel, 50 Mbps, level shifter, functional isolation, Pololu
