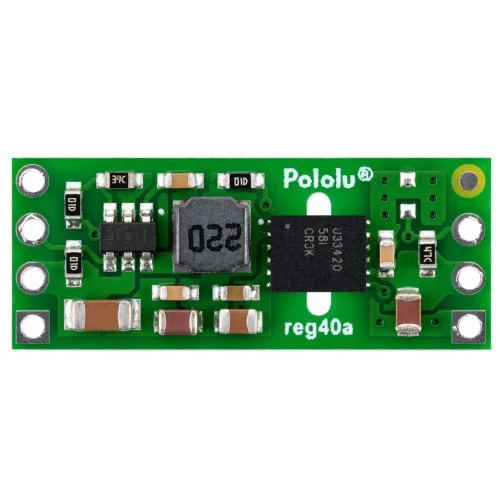

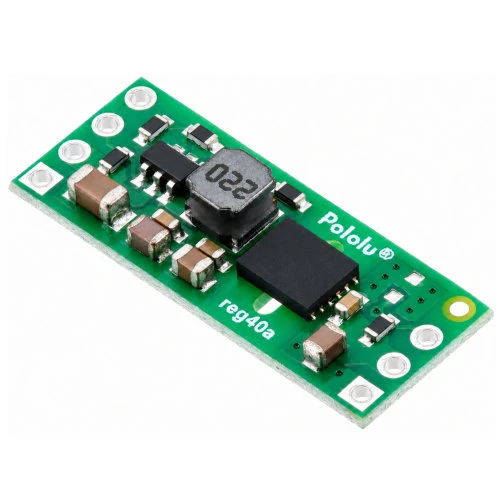

5V 300mA Isolated Step-Down Voltage Regulator D24Z3F5
The Pololu D24Z3F5 converts 5.5–36V input into an isolated 5V or 5.5V output, delivering up to 300mA while helping prevent ground loops in compact breadboard systems for sensitive electronic applications.
Quick Spec
- Input Voltage: 5.5V to 36V
- Output Voltage: 5V default or 5.5V selectable
- Output Current: Up to 300mA continuous
- Isolation Rating: 3000VRMS basic isolation
- Working Isolation: 820VRMS maximum
- Output Accuracy: ±4%
- Typical Efficiency: 45% to 55%
- Protection: Over-temperature protection
- Board Size: 25.4mm × 10.16mm
- Pin Pitch: 2.54mm breadboard-compatible

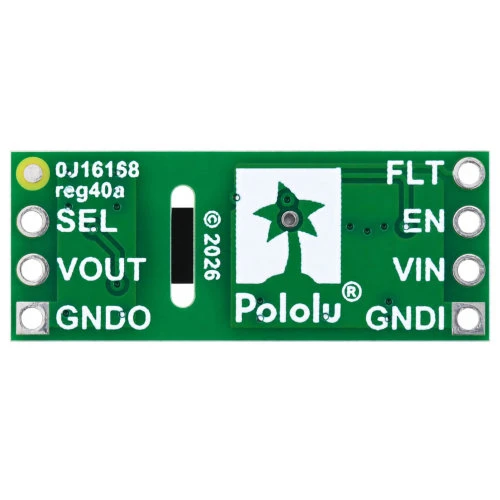

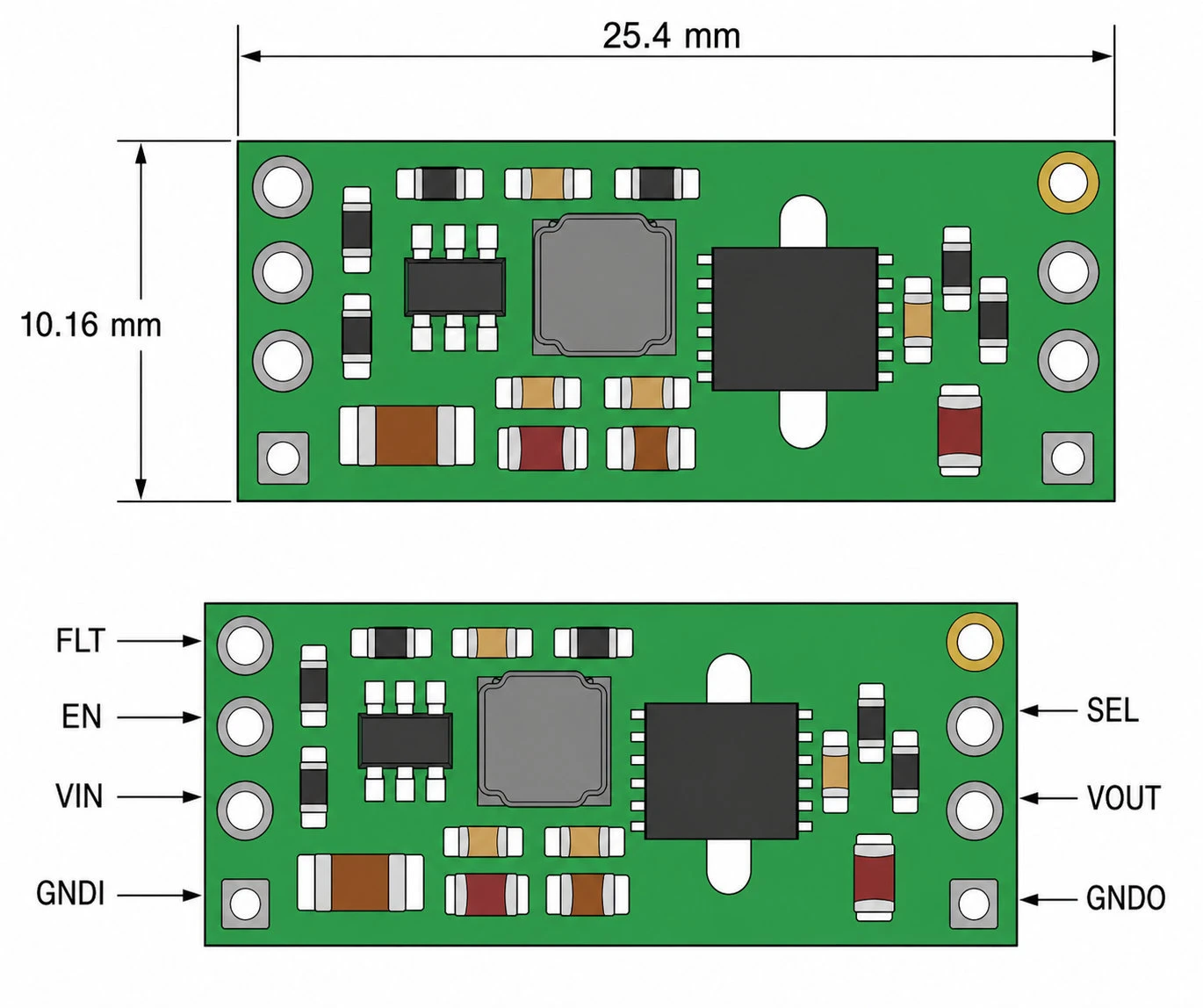

Dimensions and Pin definitions
Resources
Shipping List
- 1x 5V 300mA Isolated Step-Down Voltage Regulator D24Z3F5
5V 300mA Isolated Step-Down Voltage Regulator D24Z3F5
- Brand: Pololu Electronics
- Product Code: 5756
- Weight: 0.002kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | Limited Stock | FF316 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R135.00 (Inc Tax: R155.25)
Tags: D24Z3F5, Pololu, isolated regulator, DC-DC converter, buck regulator, 5V regulator, 300mA
