12V 100mA Isolated Step-Up/Step-Down Voltage Regulator S21Z1F12
This compact isolated regulator converts a wide 5.5–36V input into regulated 12V and 5V outputs, helping prevent ground loops while fitting breadboards and space-constrained electronic projects with simple control pins.
Quick Spec
- Regulator Type: Isolated step-up/step-down DC-DC regulator
- Input Voltage: 5.5 V to 36 V
- Main Output: Regulated 12 V DC
- Main Output Current: Up to 100 mA continuous
- Auxiliary Output: Isolated 5 V DC
- Auxiliary Current: Up to 300 mA continuous
- Output Accuracy: ±4%
- Basic Isolation Rating: 3000 VRMS
- Protection: Over-temperature protection
- Dimensions: 33.02 × 10.16 mm with 2.54 mm pin spacing

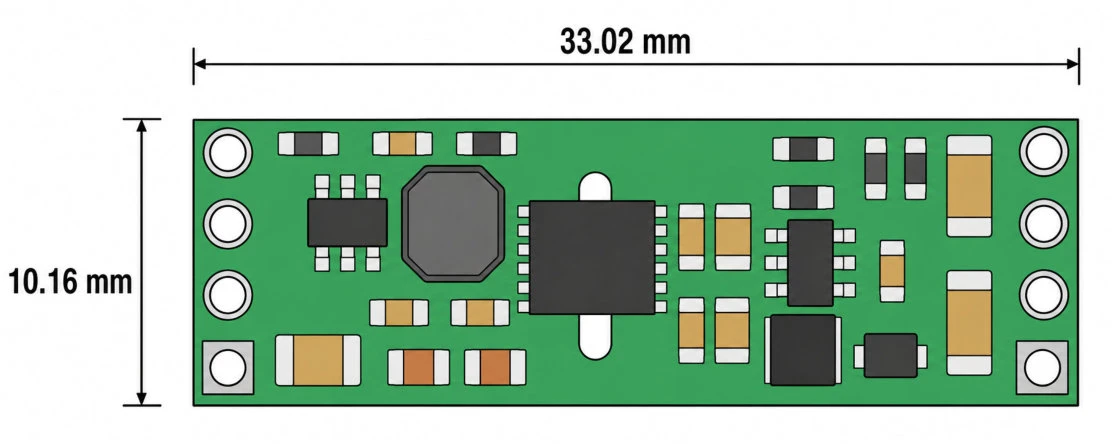

Dimensions
Resources
Shipping List
- 1x 12V 100mA Isolated Step-Up/Step-Down Voltage Regulator S21Z1F12
12V 100mA Isolated Step-Up/Step-Down Voltage Regulator S21Z1F12
- Brand: Pololu Electronics
- Product Code: 5764
- Weight: 0.002kg
- Product Status : Active
