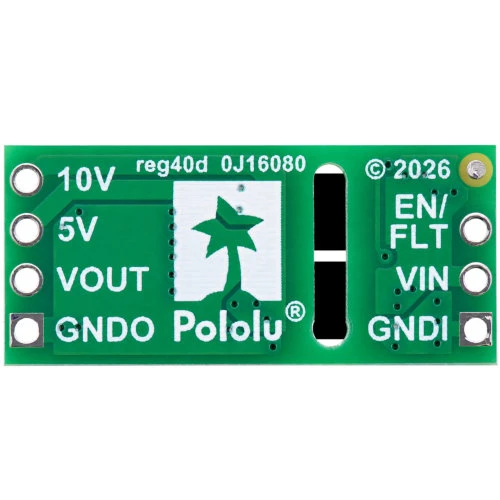

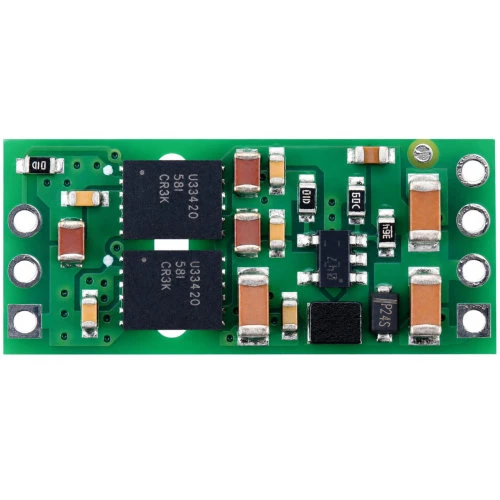

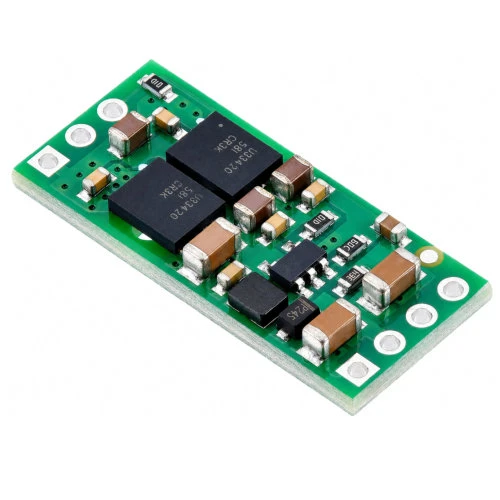

12V 125mA Isolated Step-Up Voltage Regulator U5Z9F12
Compact isolated step-up regulator converts a 4.5–5.5V supply into regulated 12V, 10V and 5V outputs, helping protect sensitive circuits from ground loops in compact breadboard-friendly reliable power applications safely.
Quick Spec
- Regulator Type: Isolated step-up voltage regulator
- Input Voltage: 4.5V to 5.5V DC
- Main Output: 12V DC at up to 125mA
- Additional Outputs: 10V and 5V DC
- 10V Output Current: Up to 175mA
- 5V Output Current: Up to 300mA
- Output Accuracy: ±4%
- Isolation Rating: 3000VRMS basic isolation
- Typical Efficiency: Approximately 50%

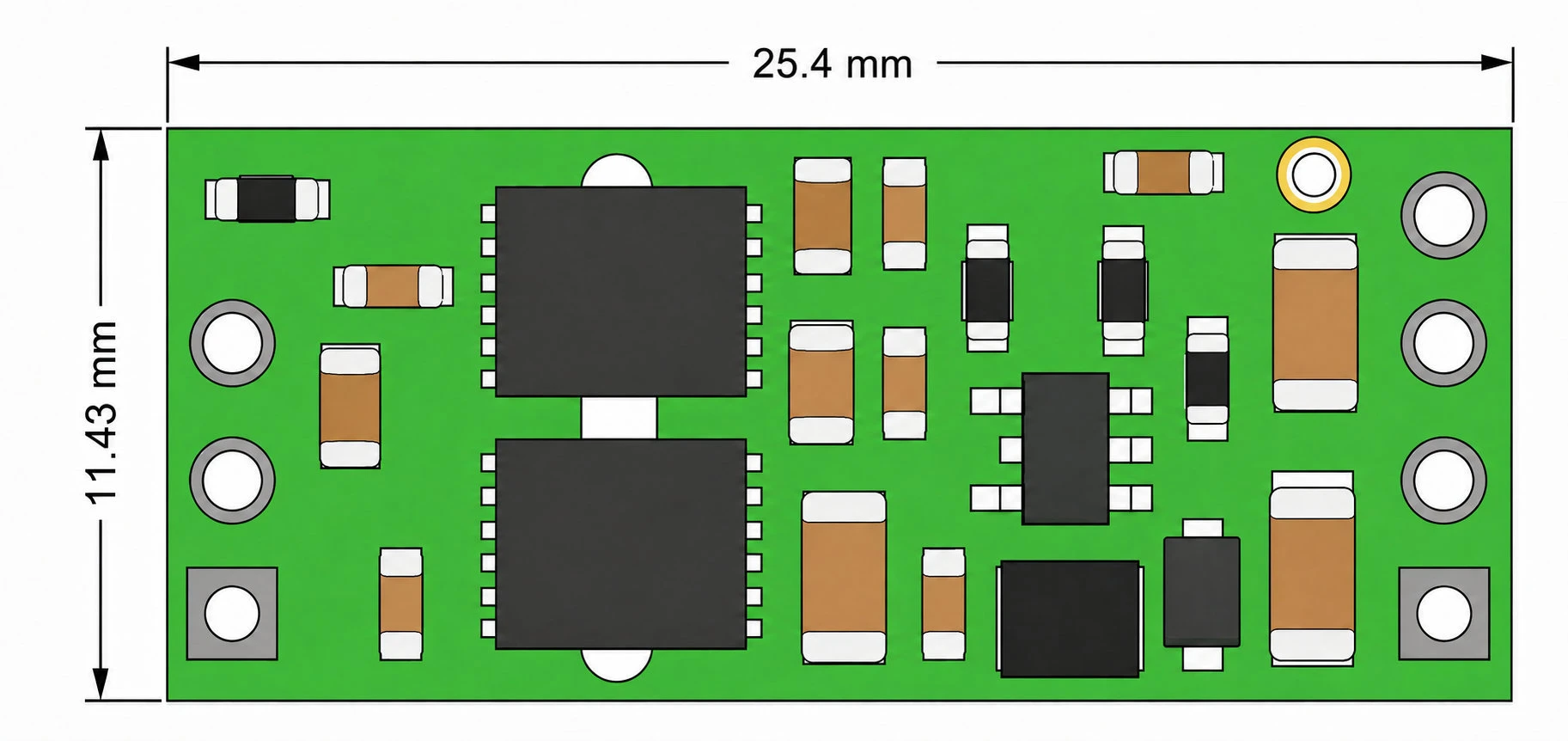

- Board Dimensions: 25.4mm × 11.43mm
Dimensions
Resources
Shipping List
- 1x 12V 125mA Isolated Step-Up Voltage Regulator U5Z9F12
12V 125mA Isolated Step-Up Voltage Regulator U5Z9F12
- Brand: Pololu Electronics
- Product Code: 5767
- Weight: 0.001kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | Limited Stock | GG2220 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R180.00 (Inc Tax: R207.00)
Tags: U5Z9F12, voltage regulator, step-up converter, boost regulator, isolated converter, DC-DC converter, 12V regulator, Pololu
