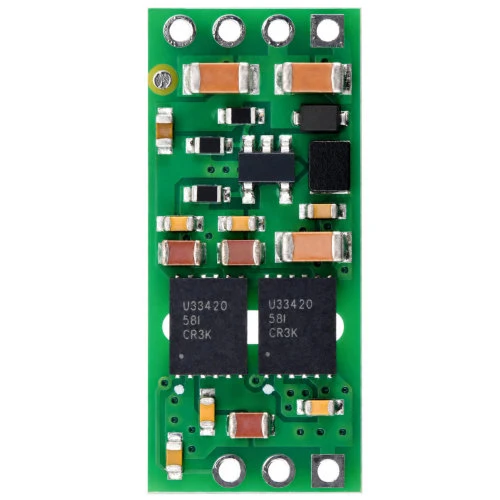

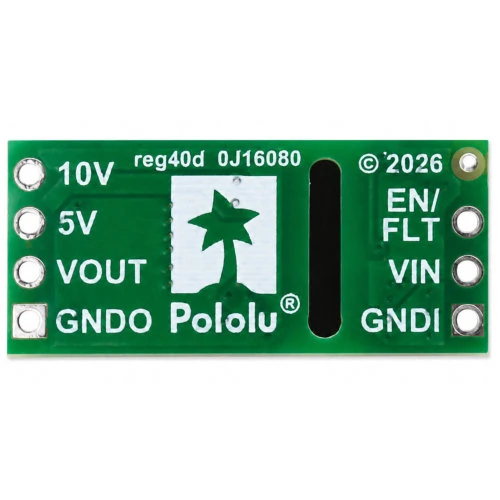

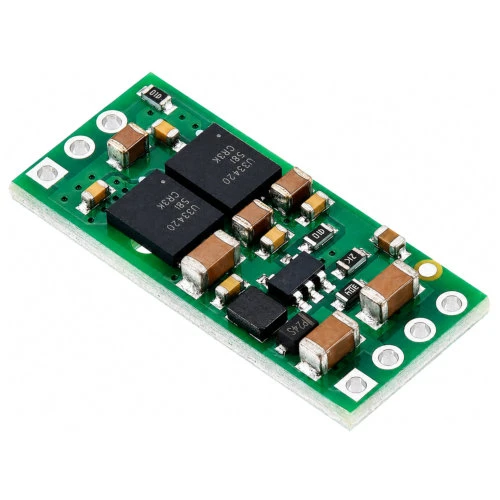

24V 50mA Isolated Step-Up Voltage Regulator U5Z9F24
This compact regulator converts a 5V supply into isolated 24V power, helping prevent ground loops while also providing accessible isolated 5V and 10V outputs for electronic projects safely and reliably.
Quick Spec
- Input Voltage: 4.5V to 5.5V DC
- Main Output: 24V DC
- Maximum Output Current: 50mA continuous at 24V
- Auxiliary Outputs: Isolated 5V and 10V
- 5V Output Current: Up to 300mA
- 10V Output Current: Up to 175mA
- Output Accuracy: ±4%
- Basic Isolation Rating: 3000VRMS
- Typical Efficiency: 45%

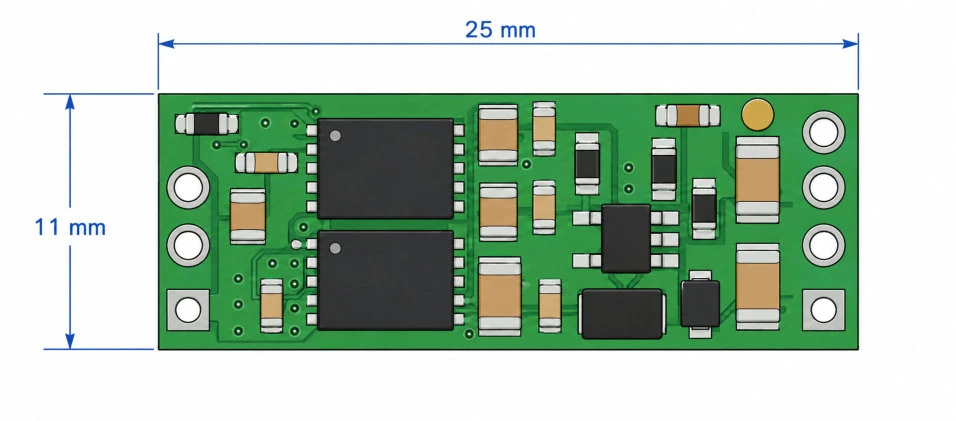

Dimensions
Resources
Shipping List
- 1x 24V 50mA Isolated Step-Up Voltage Regulator U5Z9F24
24V 50mA Isolated Step-Up Voltage Regulator U5Z9F24
- Brand: Pololu Electronics
- Product Code: 5770
- Weight: 0.002kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | Limited Stock | GG224 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R180.00 (Inc Tax: R207.00)
Tags: U5Z9F24, 24V regulator, isolated regulator, boost converter, DC-DC converter, galvanic isolation, Pololu
