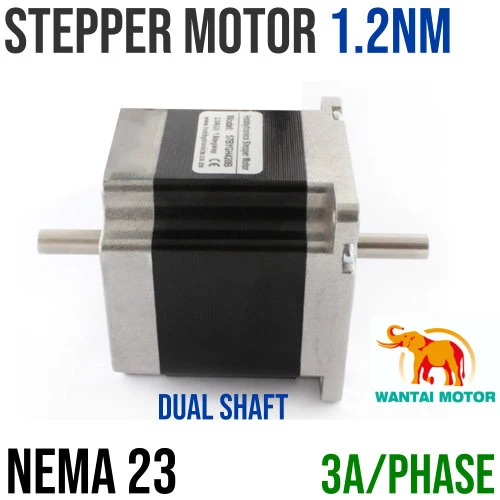

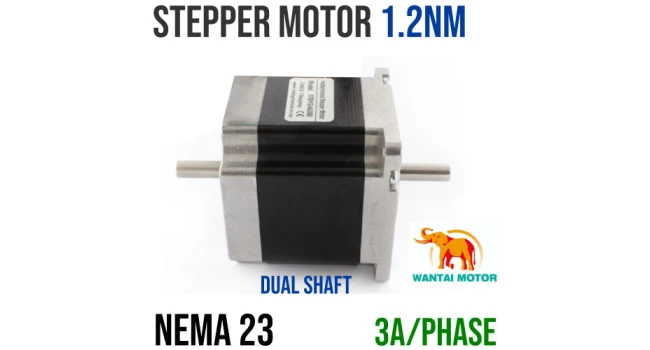

Stepper Motor 1.2Nm Dual Shaft NEMA23 3A per Phase
Stepper motor can be used in such areas as industrial transmission control, powder packaging machine, CD-ROM reader, winding machine, printing machine, cutting machine, engraving machines, printers, plotters, robotics and other related products.
Quick Spec
- Holding Torque: 1.2N.m
- Amps: 3.0A(U)
- Step Angle(degrees): 1.8Step
- Angle Accuracy: ±5%
- Resistance Accuracy: ±10%
- Ambient Temperature: -20C~+50C
- Dielectric Strength: 500VAC/1 minute
- Lead wire No.: 4 lead
- Frame size: NEMA 23, 57mm
- Application: cnc Industrial Machinery
- Shaft diameter: 6.35mm
- Inductance Accuracy: ±20%
- Temperature Rise: 80C max(rated current, 2 phase on)
- Insulation Resistance: 100MΩ Min.500VDC
Shipping List
- 1 X NEMA 23 1.2Nm Dual Shaft Stepper Motor
Stepper Motor 1.2Nm Dual Shaft NEMA23 3A per Phase
- Brand: Wantai
- Product Code: 57BYGH530L35B35
- Weight: 0.699kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | In Stock | D3037 |
We ship free of charge between branches to complete your order.
-
R438.00 (Inc Tax: R503.70)
Tags: nema 23, 1.2nm, dual shaft, stepper motor. cnc
