• Description

Power Suppy, 5V 700mA, Open Frame, Type B

This power module is an isolated-type industrial level power module that can be used in AC-DC power converting. When the situations of over voltage, over current and short circuit appear, this module will help to protect whole device by locking up.

Quick Spec

• Module: WX-DC12003
• AC Input Voltage Range: AC 50V-277V
• DC Input Voltage Range: DC 70V-390V
• Output Voltage: 5V ±0.15 V
• Output Current: up to 700mA
• No-load Power: 0.05W
• Power at full load: 4W
• Operation Indicator: LED
• Efficiency: ~80%
• Protection: overvoltage, overcurrent, overheating, overload, and short circuit
• Dimentions: 18.1 x 23.5 x 12.4mm
• Weight: 7g

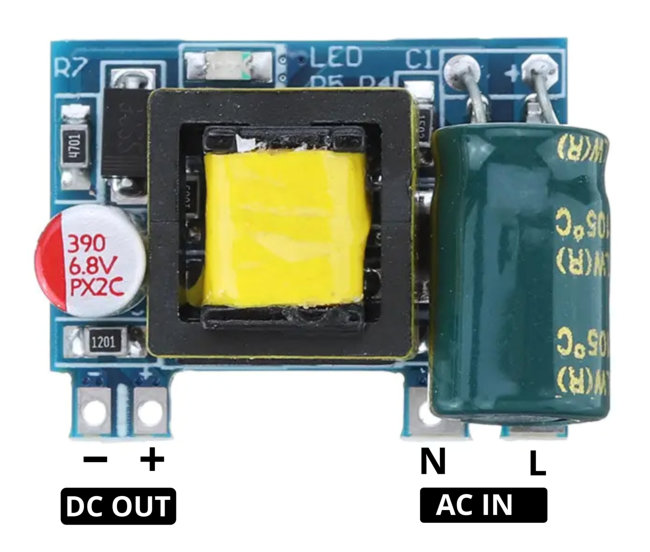

Board Layout

Dimensions

Shipping List

• 1 x Power Supplies, 5V 700mA, Open Frame, Type B

Power Supply, 5V 700mA, Open Frame, Type B

• Brand: Generic
• Product Code: 5V700MA-B
• Weight: 0.007kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	In Stock	FD004
Stellenbosch	In Stock	D4023
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R32.00 (Inc Tax: R36.80)
