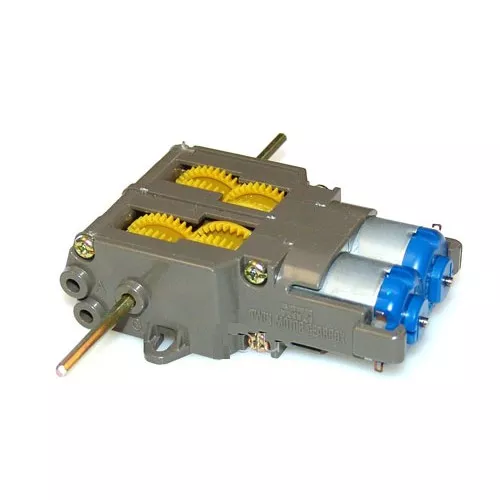

Tamiya Twin Motor Gearbox
The Tamiya twin-motor gearbox is a small (3-inch long) plastic gearbox. It contains two small brushed DC motors that drive separate 3mm hexagonal output shafts. There are two ways to put the kit together: with a high-speed 58:1 gear ratio or with a slower 203:1 gear ratio. Either way, the motors provide plenty of power to drive any small robot. For a gearbox with a similar form factor and more gear ratio options, see the Tamiya double gearbox.
Quick Spec
- Typical operating voltage:3 V
- Gear ratio options: 58, 204:1
- Free-run motor shaft speed @ 3V: 12300 rpm
- Free-run current @ 3V: 150 mA
- Stall current @ 3V: 2100 mA
- Motor shaft stall torque @ 3V: 0.5 oz·in
- Colour: gray
Shipping List
- 1 X Tamiya Twin Motor Gearbox
Tamiya Twin Motor Gearbox
- Brand: Pololu Electronics
- Product Code: 61
- Weight: 0.113kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R210.00 (Inc Tax: R241.50)
