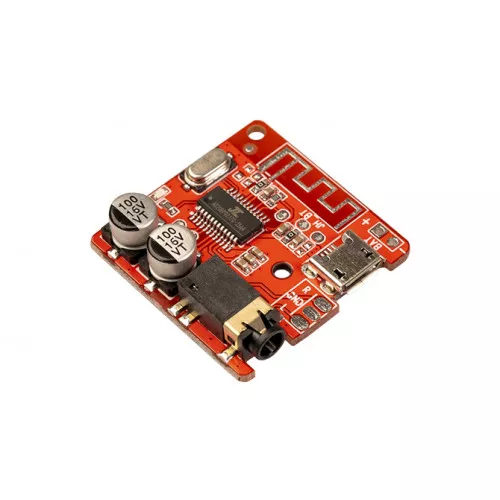

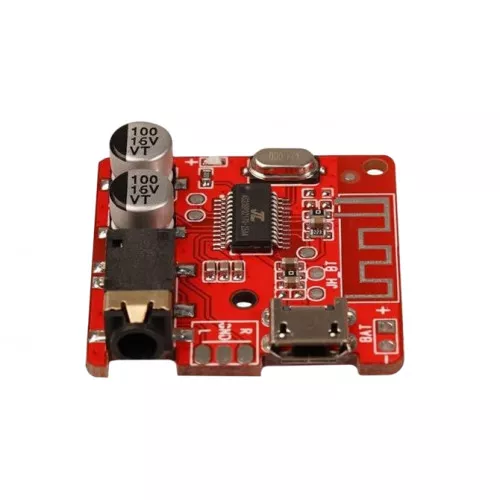

Bluetooth 5.0 Audio Receiver
This Bluetooth Audio receiver module uses the JL6925A as the main control chip. The board has a standard 3.5mm AUX connector onboard so the you can connect headphones, speakers, amplifier, etc. The module supports MP3, WMA, WAV, APE and lossless FLAC audio formats.
With its compact form factor and 3.7 - 5V DC power requirement, this is an ideal module to add bluetooth feature to a car or turn an old loudspeaker into a wireless bluetooth speaker.
Quick Spec
- Alternative Product Code: XY-BT-MINI
- Power Supply: 5V
- SNR: 90dB
- THD+N: -70dB
- Crosstalk: -86dB
- DNR: 91dB
- Support Profile: A2DP/AVCTP/AVDTP/AVRCP/HFP
- LOS: >15m
- Dimensions: 30 x 30mm
- Net Weight: 4g

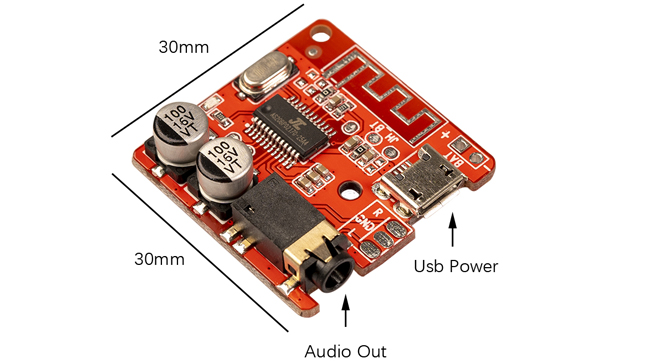

Board Layout
Shipping List
- 1 x Bluetooth 5.0 Audio Receiver
Bluetooth 5.0 Audio Receiver
- Brand: Generic
- Product Code: 6925A
- Weight: 0.004kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R48.00 (Inc Tax: R55.20)
