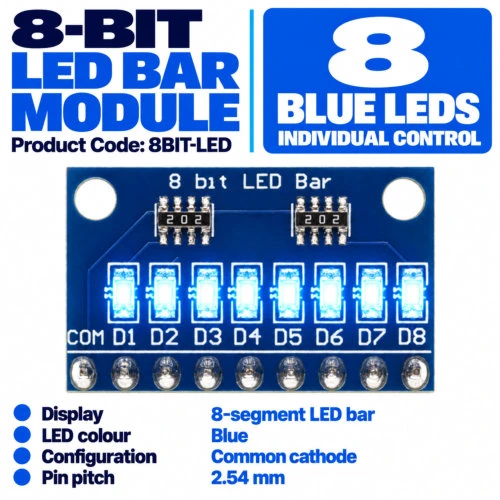

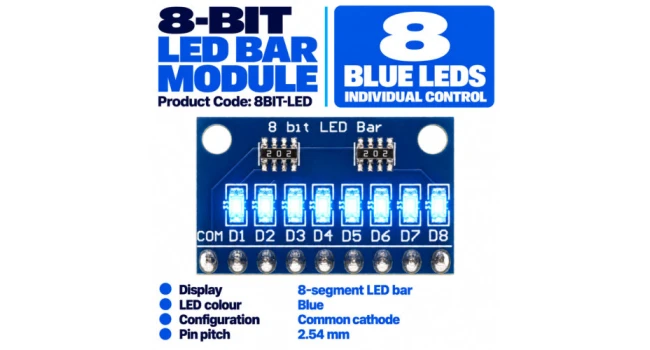

8-Bit Blue LED Bar Module – Common Cathode
Compact 8-bit blue LED bar module with common-cathode wiring, individual segment control, standard 2.54 mm pin spacing, and mounting holes for indicators, displays, prototypes, and embedded electronics projects and experiments.
Quick Spec
- Display: 8-segment LED bar
- LED Colour: Blue
- Configuration: Common cathode
- Control: Individual LED channels
- Pins: COM and D1–D8
- Header: 9 pins
- Pin Pitch: 2.54 mm
- Dimensions: 23 × 12.5 × 11 mm
- Mounting: Dual mounting holes
- PCB Colour: Blue
Circuit Diagram
Shipping List
- 1x 8-Bit Blue LED Bar Module – Common Cathode
8-Bit Blue LED Bar Module – Common Cathode
- Brand: Generic
- Product Code: 8BIT-LED
- Weight: 0.005kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | UI020 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R16.00 (Inc Tax: R18.40)
Tags: 8-bit LED, LED bar, blue LED, common cathode, indicator module, 2.54mm pitch, Arduino module
