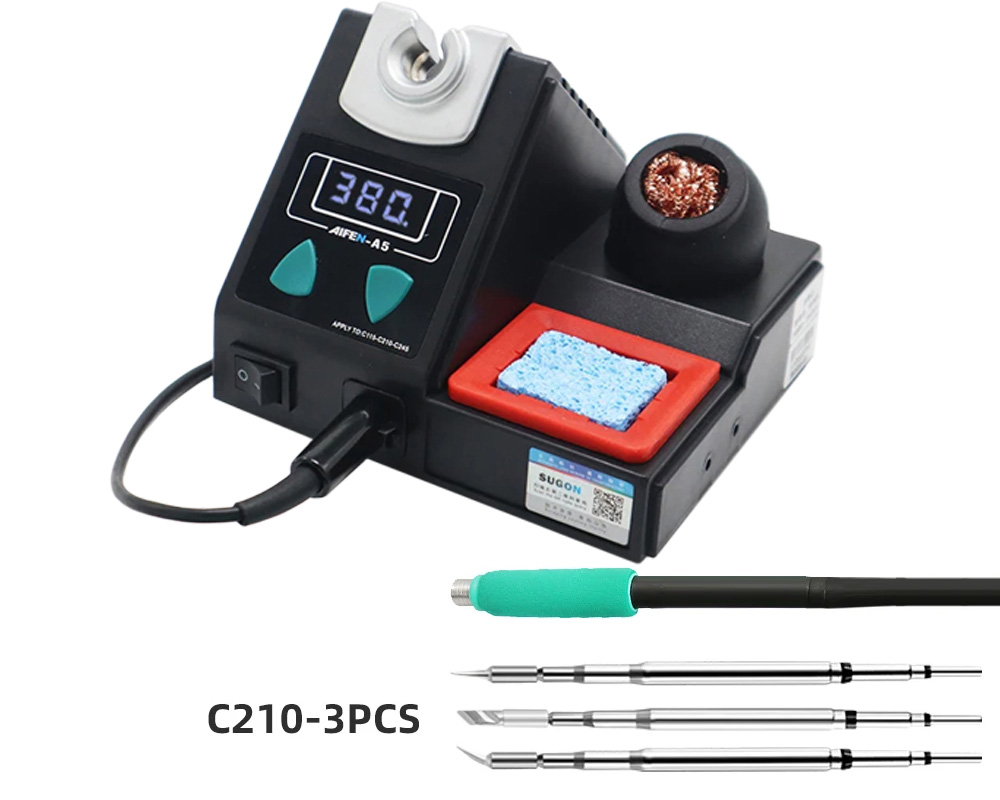

SUGON AIFEN A5 Solder Station - 3x C210 Tips

The SUGON AIFEN A5 is a compact, intelligent soldering station designed for precision electronics work, offering fast heat-up and stable temperature control for everyday soldering and rework tasks. With chip-based temperature regulation and support for JBC-style tips, it delivers consistent performance for both hobbyists and professionals.



Featuring a clear digital display, programmable temperature presets, and automatic sleep functionality when the handle is placed in the stand, the AIFEN A5 improves efficiency while extending tip life. Its ESD-safe design and built-in protection features make it a reliable choice for fine PCB work and general electronic repairs.

Quick Spec

• Model: AIFEN A5 C210
• Power: up to 120W
• Input voltage: AC 100–240V, 50/60Hz
• Temperature range: 100–450 °C (adjustable)
• Temperature control: chip-based digital control
• Display: LED (set and real-time temperature)
• Temperature units: °C / °F selectable
• Programmable channels: 3 memory presets
• Tip compatibility: C210 (also supports T115 / T245 handles)
• Heat-up time: ~2 seconds
• Auto sleep: yes (when handle is placed in stand)
• Safety: ESD safe, short-circuit protection
• Calibration: temperature calibration supported

SUGON A5 Product Video

Compatible Solder Tips

• C245-741 Chisel Solder Tip 2.4x0.6mm
• C245-903 Conical Solder Tip 1mm
• C245-914 Wide Solder Tip 10x2.4mm
• C245-752 Wide Solder Tip 15x2.4mm
• C245-913 Wide Solder Tip 21x2.4mm
• C245-792 Wide Solder Tip 40x2.4mm
• C245-792 Wide Solder Tip 40x2.4mm

Handles compatible with the T21

• C210 (T210) Series Handle - Diameter 3.5mm ies Ultra Slim, precision micro-soldering
• C245 (T245) Series Handle - Diameter 6mm. Mid Size, PCB work
• C470 (T470) Series Handle - Diameter 8mm High Power, large copper areas, big joints

Shipping List

• 1 x SUGON AIFEN A5 Solder Station
• 1 x SUGON C210 Handle
• 1 x C210-IS Tip
• 1 x C210-K Tip
• 1 x C210-I Tip
