Arduino Nano 33 IoT - Original
The Arduino Nano 33 IoT is a compact yet powerful development board designed to bring Wi-Fi and Bluetooth® Low Energy connectivity to IoT and pico-network applications. Built around the low-power Arm® Cortex®-M0+ SAMD21 microcontroller, it offers an easy and affordable entry point for creating connected devices such as sensor nodes, smart home controllers, and mobile-connected peripherals.
Wireless connectivity is handled by the u-blox NINA-W102 module, supporting both Wi-Fi and Bluetooth® / BLE, while secure communication is ensured through the onboard Microchip ATECC608A crypto chip. An integrated 6-axis IMU further expands its capabilities, making the Nano 33 IoT ideal for motion sensing, vibration detection, wearable projects, and robotics. With native support for Arduino IoT Cloud and a wide range of third-party cloud services, this board is a versatile, all-in-one solution for modern IoT development.
Quick Spec
- Microcontroller: SAMD21 Arm® Cortex®-M0+ 32-bit MCU
- Clock speed: 48 MHz
- Operating voltage: 3.3 V
- Input voltage (limit): 21 V
- Wireless module: u-blox NINA-W102
- Wi-Fi: IEEE 802.11 b/g/n (2.4 GHz)
- Bluetooth: Bluetooth® 5 / Bluetooth® Low Energy
- Secure element: ATECC608A crypto chip
- Flash memory: 256 KB
- SRAM: 32 KB
- EEPROM: None
- Digital I/O pins: 14
- PWM pins: 11
- Analog input pins: 8 (8/10/12-bit ADC)
- Analog output pins: 1 (10-bit DAC)
- UART: 1
- SPI: Yes
- I2C: Yes
- USB: Native USB via SAMD21
- IMU: LSM6DS3 6-axis accelerometer & gyroscope
- DC current per I/O pin: 7 mA
- Board dimensions: 45 × 18 mm

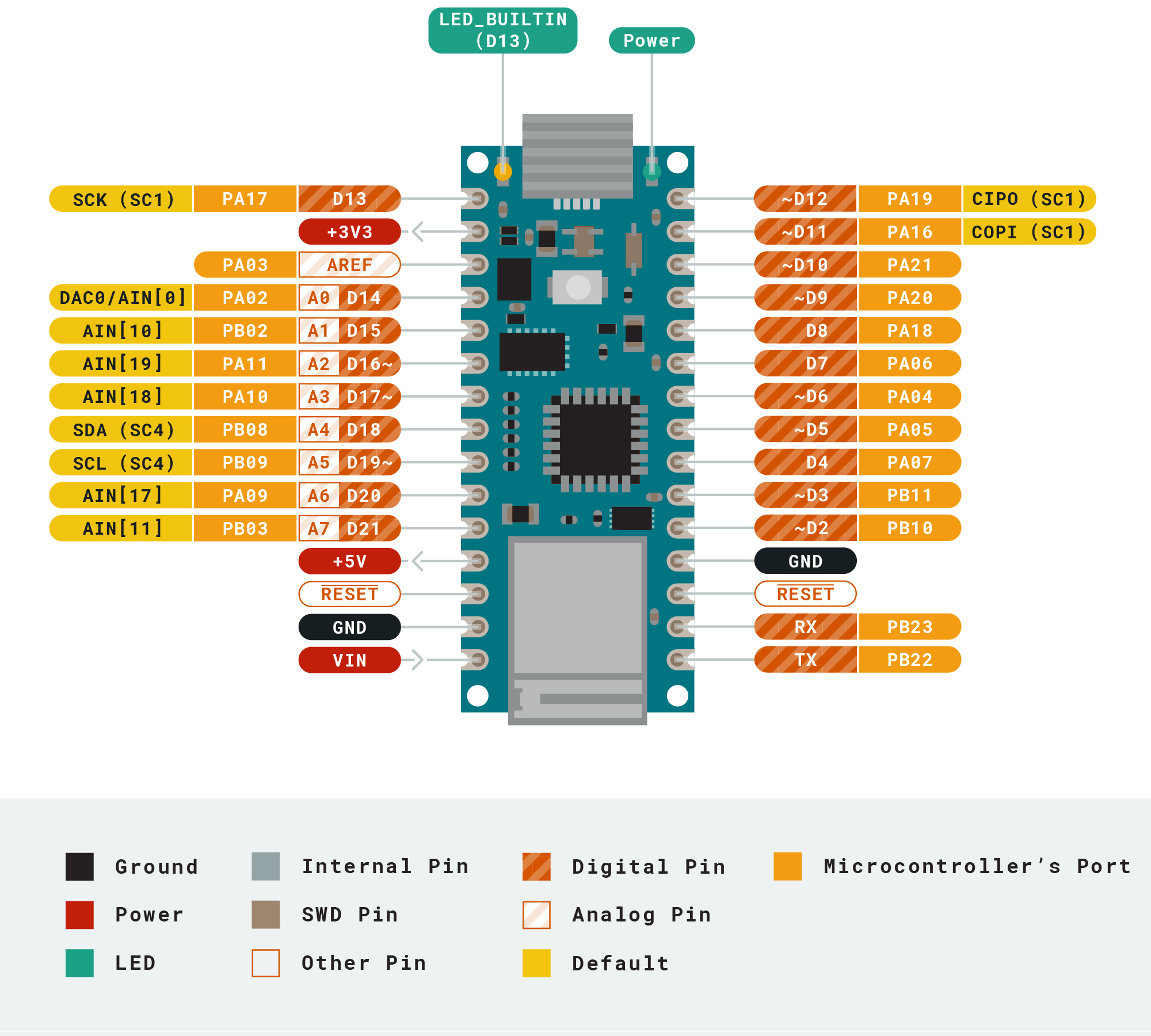

Pinout
Resources

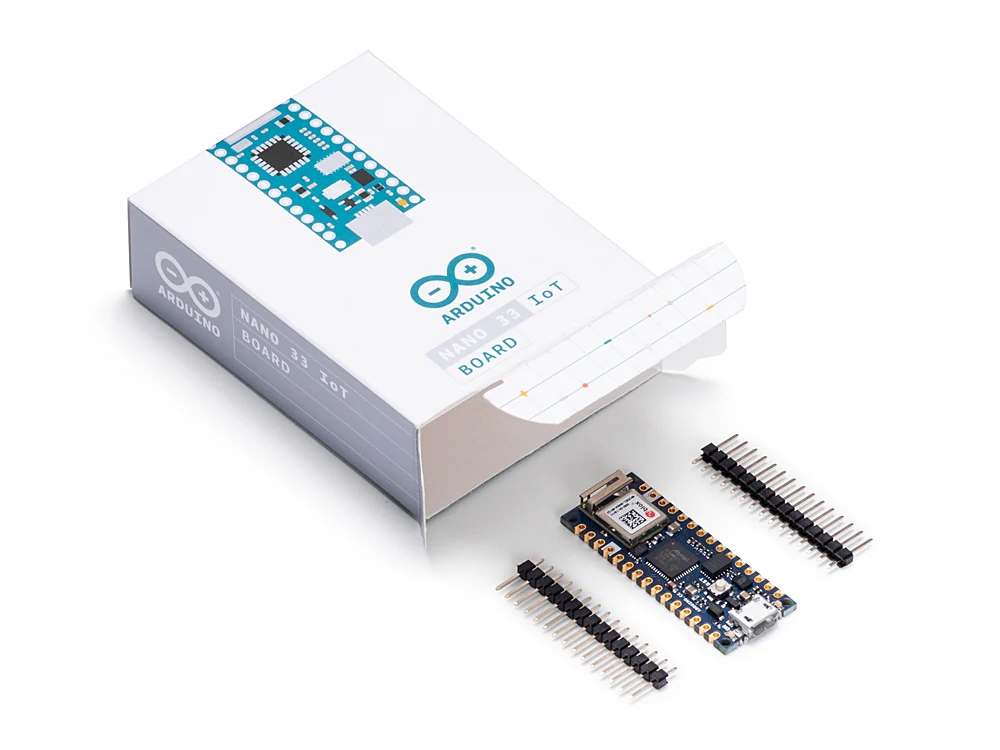

Shipping List
- 1 x Arduino Nano 33 IoT - Original
- 1 x SIL Male Header Set
Arduino Nano 33 IoT - Original
- Brand: Arduino.cc
- Product Code: ABX00027
- Weight: 0.017kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | CX0-03 |
| Stellenbosch | In Stock | 612 |
We ship free of charge between branches to complete your order.
-
R368.00 (Inc Tax: R423.20)
