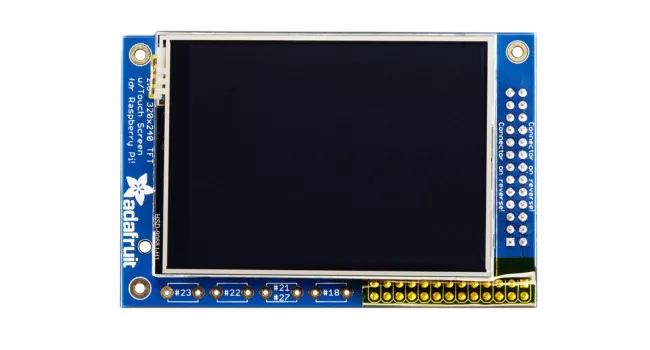

LCD TFT 2.8" + Touch for Raspberry PI B
Is this not the cutest little display for the Raspberry Pi? It features a 2.8" display with 320x240 16-bit color pixels and a resistive touch overlay. The plate uses the high speed SPI interface on the Pi and can use the mini display as a console, X window port, displaying images or video etc. Best of all it plugs right in on top!
It's designed to fit nicely onto the Pi 1 Model A or B but also works OK with the Pi Zero, Pi 3, Pi 2 or Pi 1 Model A+ or B+ (any Pi with a 2x20 connector) as long as you don't mind the PCB overhangs the USB ports by 5mm, see the photos above. If you have a modern Pi with a 2x20 connector, you may want to grab a PiTFT 2.8" Plus which does not overhang
Uses the hardware SPI pins (SCK, MOSI, MISO, CE0, CE1) as well as GPIO #25 and #24. All other GPIO are unused. Since we had a tiny bit of space, there's 4 spots for optional slim tactile switches wired to four GPIOs, that you can use if you want to make a basic user interface.
Quick Spec
- Compatible with all revisons of Raspberry Pi
- Current Draw: 100mA
- Resolution: 320x240
- Colour depth: 16-Bit
Resources
Shipping List
- 1 x LCD TFT 2.8" + Touch for Raspberry PI
LCD TFT 2.8" + Touch for Raspberry PI
- Brand: Adafruit
- Product Code: AF1601
- Weight: 0.074kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | Limited Stock | 034 |
We ship free of charge between branches to complete your order.
-
R759.00 (Inc Tax: R872.85)
