JTAG (2x2.54mm to SWD (2x5 1.27mm)

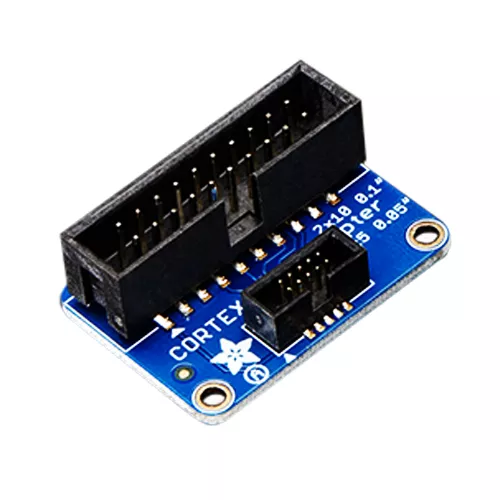

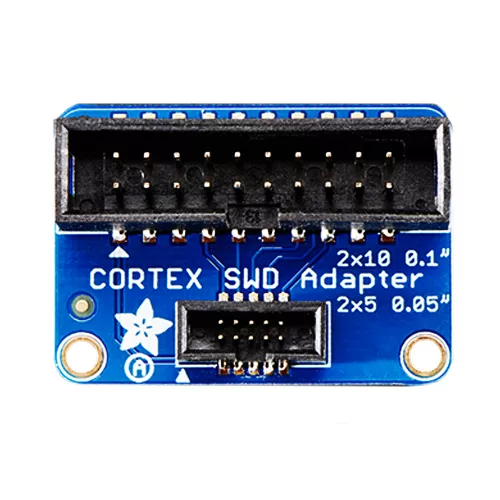

This adapter board is designed for adapting a 'classic' 2x10 (0.1"/2.54mm pitch) JTAG cable to a slimmer 2x5 (0.05"/1.27mm pitch) SWD Cable. It's helpful for using products like the JTAGulator or SEGGER J-Link with tiny boards that use the 10-pin SWD programming connector.



AF2094-003

Quick Spec

  • Dimensions: 34mm x 24mm x 12mm
  • Weight: 5.7g

Shipping List

  • 1 X JTAG (2x2.54mm to SWD (2x5 1.27mm)

PLEASE NOTE: cables are NOT included



JTAG (2x2.54mm to SWD (2x5 1.27mm)

  • Brand: Generic
  • Product Code: AF2094
  • Weight: 0.013kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock UL618
    Stellenbosch Limited Stock V66

    We ship free of charge between branches to complete your order.

  • R76.00 (Inc Tax: R87.40)
